Front Bumper Components Overview [12/2016 - ]

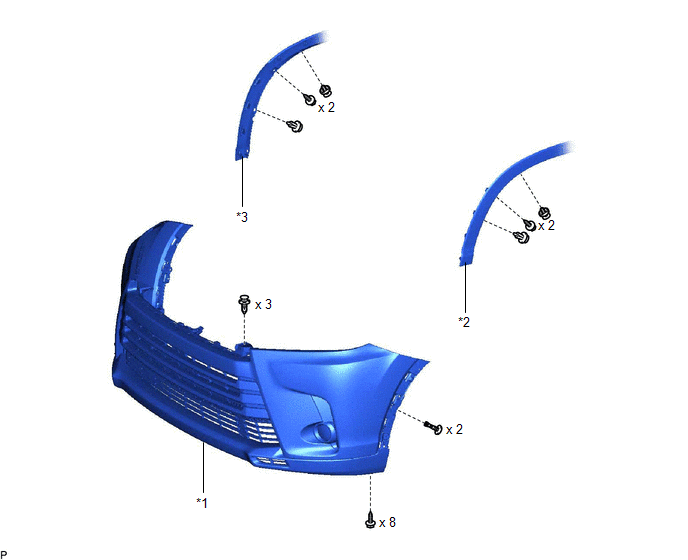

Fig 1: Front Bumper Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT BUMPER ASSEMBLY	*2	FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY LH
*3	FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY RH	-	-

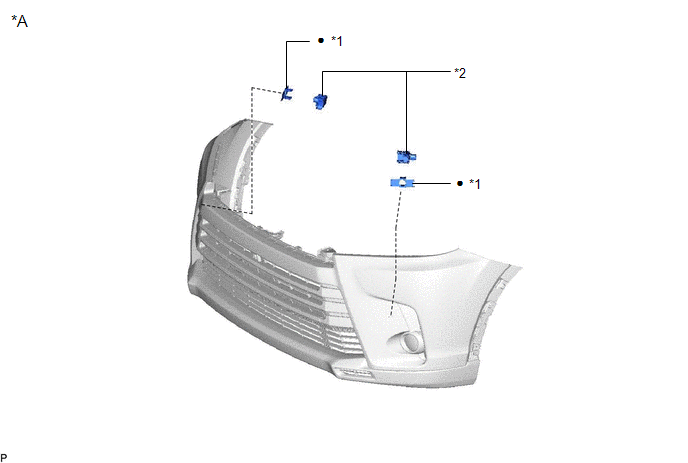

Fig 2: Front Bumper Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Intuitive Parking Assist System (for 6 Sensor Type)	-	-
*1	FRONT CORNER ULTRASONIC SENSOR RETAINER	*2	NO. 1 ULTRASONIC SENSOR
•	Non-reusable part	-	-

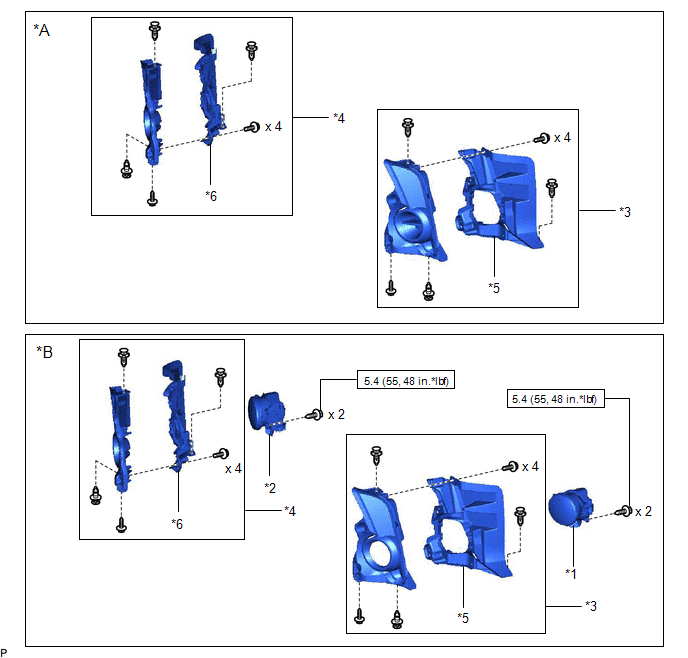

Fig 3: Front Bumper Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Fog Light	*B	w/ Fog Light
*1	FOG LIGHT ASSEMBLY LH	*2	FOG LIGHT ASSEMBLY RH
*3	FOG LIGHT COVER LH	*4	FOG LIGHT COVER RH
*5	FOG LIGHT MOUNTING BRACKET LH	*6	FOG LIGHT MOUNTING BRACKET RH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

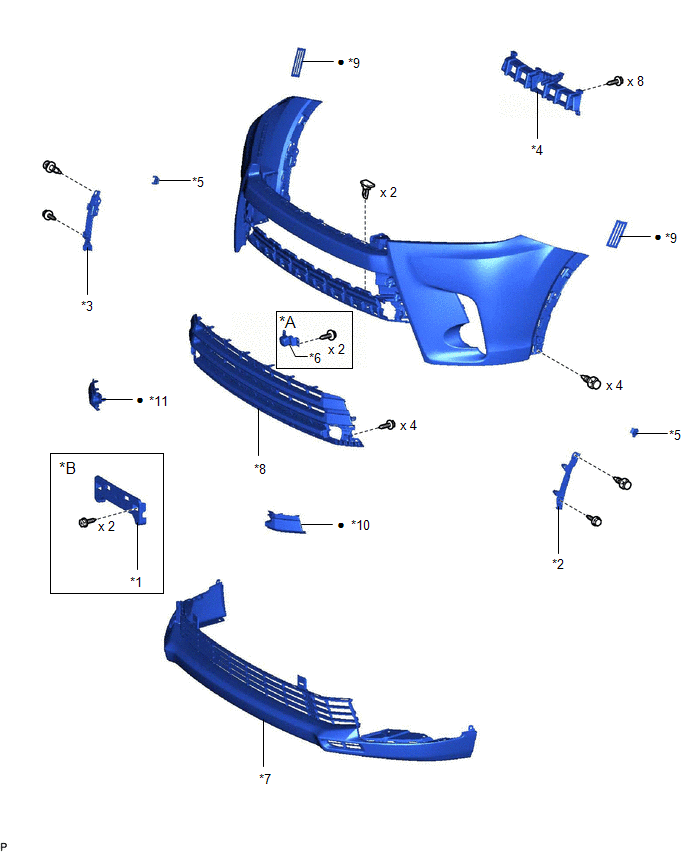

Fig 4: Front Bumper Replacement Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Panoramic View Monitor System	*B	w/ Bracket
*1	FRONT BUMPER EXTENSION MOUNTING BRACKET	*2	FRONT BUMPER SIDE RETAINER LH
*3	FRONT BUMPER SIDE RETAINER RH	*4	FRONT BUMPER UPPER CENTER RETAINER
*5	FRONT FENDER LINER RETAINER	*6	FRONT TELEVISION CAMERA ASSEMBLY
*7	LOWER FRONT BUMPER COVER	*8	LOWER RADIATOR GRILLE SUB-ASSEMBLY
*9	NO. 1 MOULDING TAPE	*10	RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH
*11	RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH	-	-
•	Non-reusable part	-	-

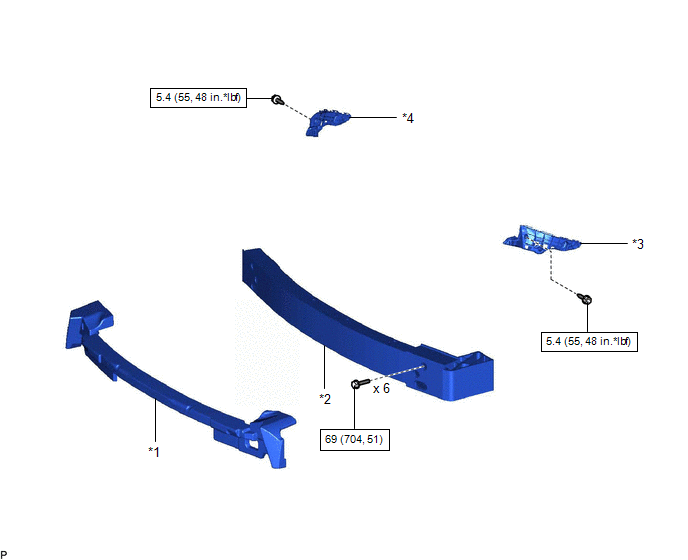

Fig 5: Front Bumper Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT BUMPER ENERGY ABSORBER	*2	FRONT BUMPER REINFORCEMENT
*3	FRONT BUMPER STAY LH	*4	FRONT BUMPER STAY RH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
