Components [11/2016 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

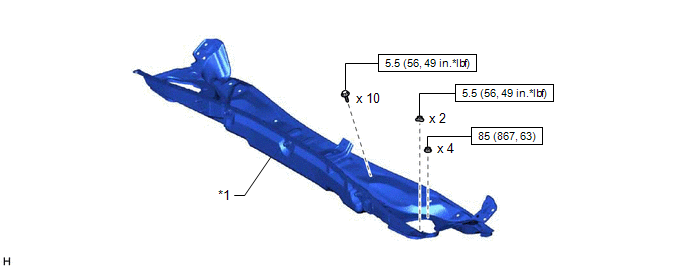

Fig 1: Transmission Wire Replacement Components With Torque Specifications (1 Of 7)
GTY721043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OUTER COWL TOP PANEL SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

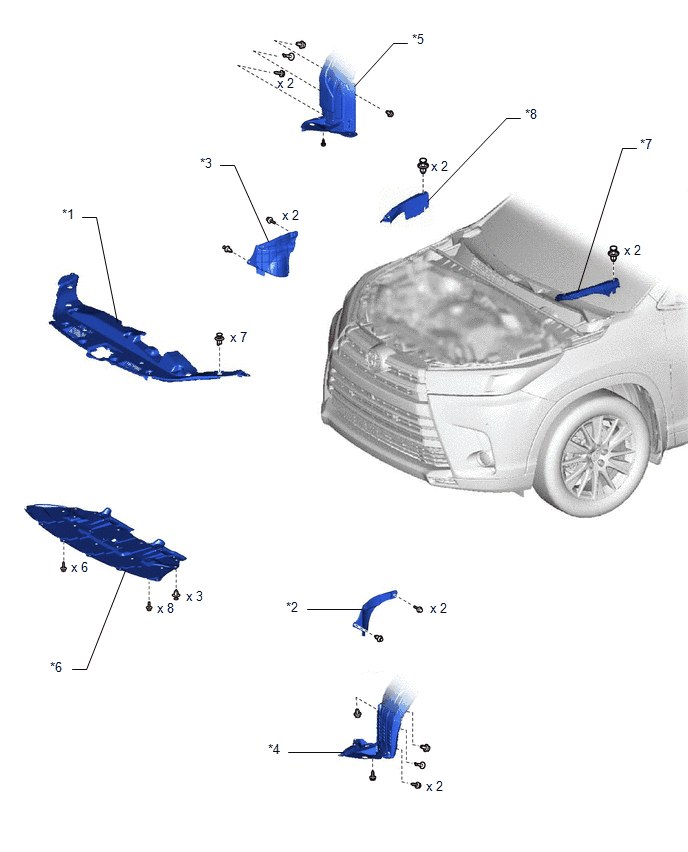

Fig 1: Transmission Wire Replacement Components (2 Of 7)
GTY739654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COOL AIR INTAKE DUCT SEAL *2 FRONT FENDER APRON SEAL LH
*3 FRONT FENDER APRON SEAL RH *4 FRONT FENDER LINER LH
*5 FRONT FENDER LINER RH *6 NO. 1 ENGINE UNDER COVER
*7 RADIATOR SIDE DEFLECTOR SEAL LH *8 RADIATOR SIDE SEAL RH

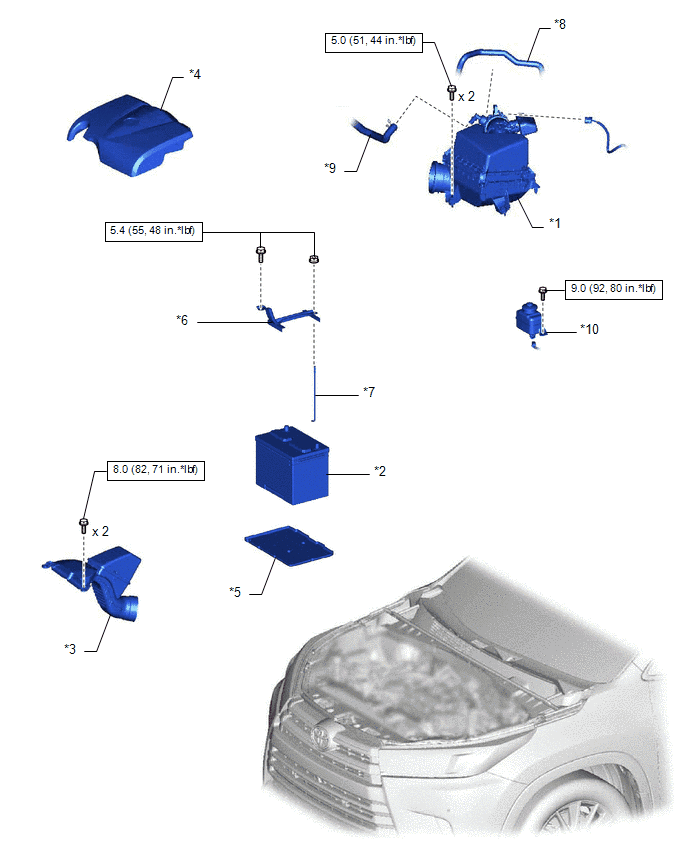

Fig 1: Transmission Wire Replacement Components With Torque Specifications (3 Of 7)
GTY691742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE *2 BATTERY
*3 INLET AIR CLEANER ASSEMBLY *4 V-BANK COVER SUB-ASSEMBLY
*5 BATTERY TRAY *6 BATTERY CLAMP
*7 BATTERY CLAMP BOLT *8 NO. 1 FUEL VAPOR FEED HOSE
*9 NO. 2 VENTILATION HOSE *10 BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -

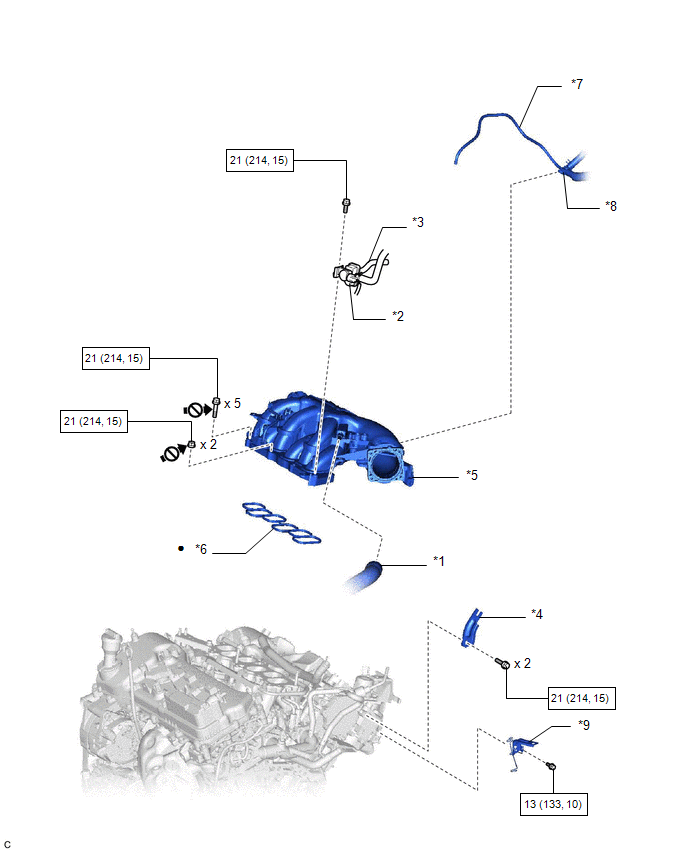

Fig 1: Transmission Wire Replacement Components With Torque Specifications (4 Of 7)
GTY712607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 VENTILATION HOSE *2 PURGE VALVE (PURGE VSV)
*3 NO. 1 FUEL VAPOR FEED HOSE *4 NO. 2 SURGE TANK STAY
*5 INTAKE AIR SURGE TANK ASSEMBLY *6 AIR SURGE TANK TO INTAKE MANIFOLD GASKET
*7 VACUUM HOSE SUB-ASSEMBLY *8 NO. 2 AIR TUBE
*9 WIRE HARNESS CLAMP BRACKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Do not apply lubricants (to the threaded parts) - -

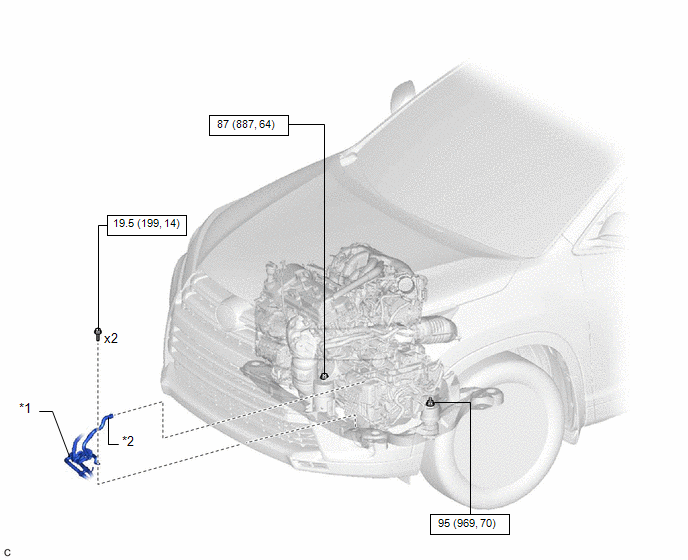

Fig 1: Transmission Wire Replacement Components With Torque Specifications (5 Of 7)
GTY730512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION OIL THERMOSTAT *2 OUTLET NO. 1 OIL COOLER HOSE
N*m (kgf*cm, ft.*lbf): Specified torque - -

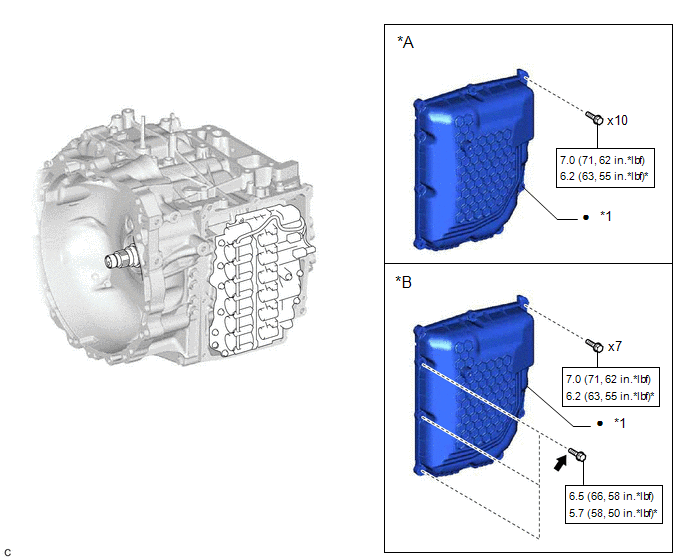

Fig 1: Transmission Wire Replacement Components With Torque Specifications (6 Of 7)
GTY738968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AISIN AW Made *B for TMC Made
*1 TRANSMISSION CASE SIDE COVER - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with a union nut wrench
• Non-reusable part Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
* Precoated part - -

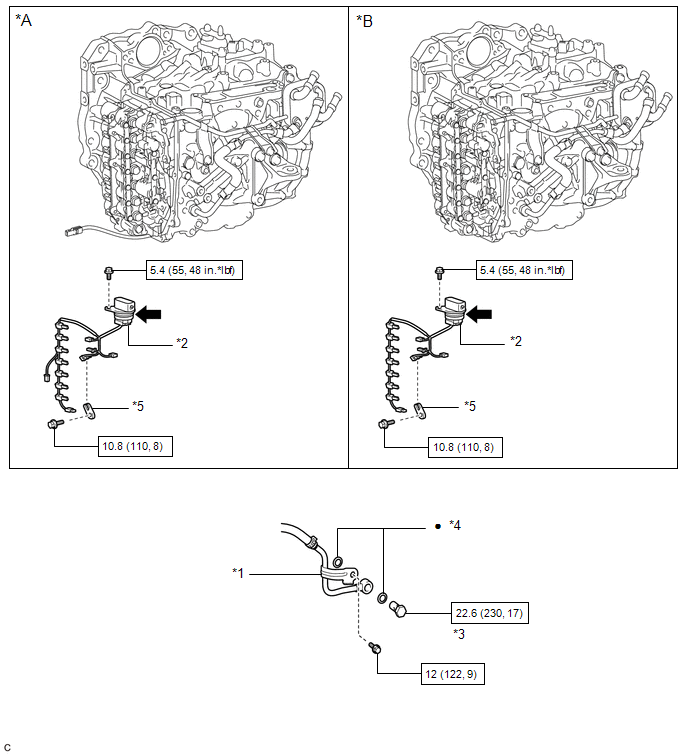

Fig 1: Transmission Wire Replacement Components With Torque Specifications (7 Of 7)
GTY728508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Stop And Start System *B w/o Stop And Start System
*1 OIL COOLER UNION SUB-ASSEMBLY *2 TRANSMISSION WIRE
*3 OIL COOLER UNION BOLT *4 GASKET
*5 TEMPERATURE SENSOR CLAMP - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -
