Components [11/2016 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

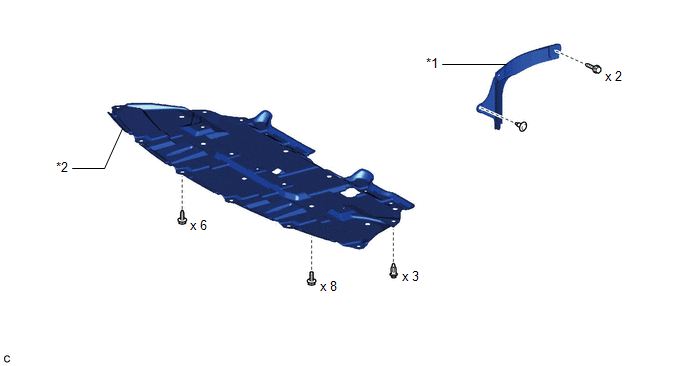

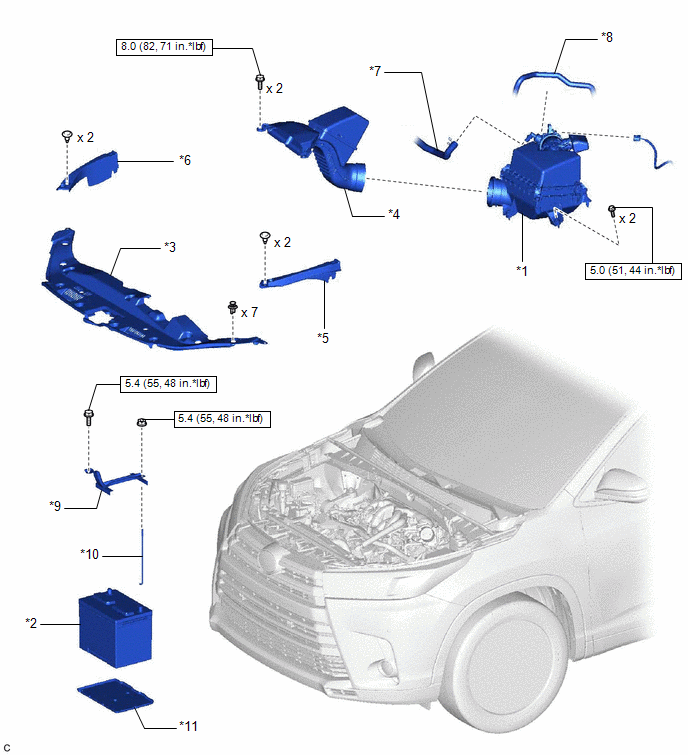

| Callout | Description | Callout | Description |
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | BATTERY |
| *3 | COOL AIR INTAKE DUCT SEAL | *4 | INLET AIR CLEANER ASSEMBLY |
| *5 | RADIATOR SIDE DEFLECTOR SEAL LH | *6 | RADIATOR SIDE SEAL RH |
| *7 | NO. 2 VENTILATION HOSE | *8 | NO. 1 FUEL VAPOR FEED HOSE |
| *9 | BATTERY CLAMP | *10 | BATTERY CLAMP BOLT |
| *11 | BATTERY TRAY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

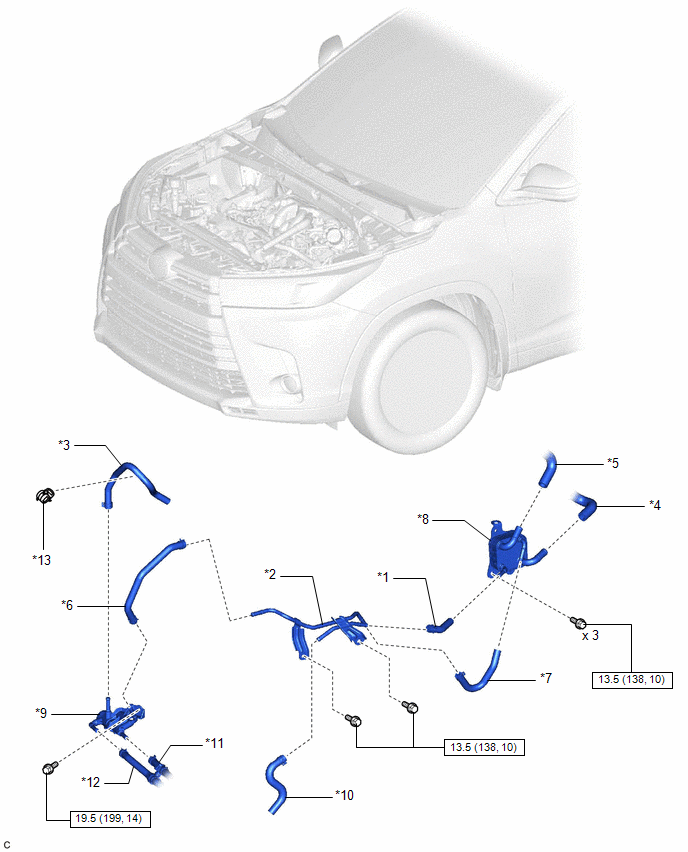

| Callout | Description | Callout | Description |
| *1 | INLET NO. 2 OIL COOLER HOSE | *2 | NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE |
| *3 | NO. 1 TRANSMISSION OIL COOLER HOSE | *4 | NO. 3 WATER BY-PASS HOSE |
| *5 | NO. 4 WATER BY-PASS HOSE | *6 | OUTLET NO. 1 OIL COOLER HOSE |
| *7 | OUTLET NO. 3 OIL COOLER HOSE | *8 | TRANSMISSION OIL COOLER |
| *9 | TRANSMISSION OIL THERMOSTAT | *10 | INLET NO. 1 OIL COOLER HOSE |
| *11 | OUTLET NO. 2 OIL COOLER HOSE | *12 | NO. 2 TRANSMISSION OIL COOLER HOSE |
| *13 | TRANSMISSION OIL COOLER TUBE CLAMP | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
