Removal [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 8

  2. REMOVE TRANSMISSION OIL COOLER AIR DUCT

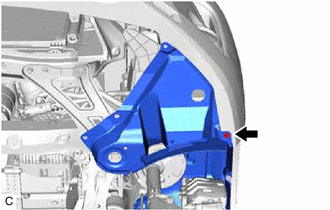

    1. Remove the bolt.
      GTY704703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn back the front fender liner LH.

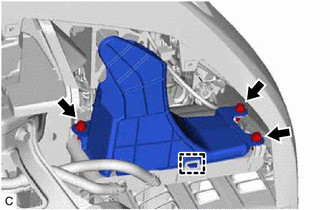

    3. Remove the 3 bolts.
      GTY704705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the guide to remove the transmission oil cooler air duct from the oil cooler assembly.
  3. DISCONNECT OIL COOLER HOSE

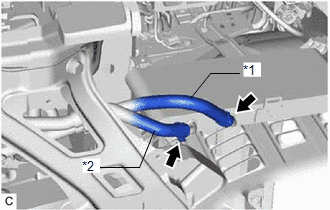

    1. Slide the 2 clips and disconnect the outlet No. 2 oil cooler hose and No. 2 transmission oil cooler hose from the oil cooler assembly.
      GTY706194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Outlet No. 2 Oil Cooler Hose
      *2 No. 2 Transmission Oil Cooler Hose
      NOTE:

      Use a container to catch any fluid which flows out of the outlet No. 2 oil cooler hose, No. 2 transmission oil cooler hose and oil cooler assembly.

  4. REMOVE OIL COOLER ASSEMBLY

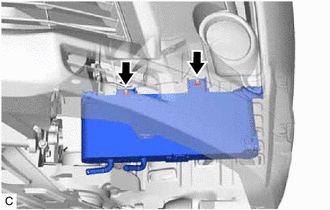

    1. Remove the 2 nuts and oil cooler assembly from the oil cooler bracket.
      GTY704706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Use a container to catch any fluid which flows out of the oil cooler assembly.

  5. REMOVE OIL COOLER BRACKET

    HINT:

    Perform this procedure only when replacement of the oil cooler bracket is necessary.

    1. Remove the bolt, nut and oil cooler bracket from the vehicle body.
      GTY736792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
      *b Nut
