Installation [11/2016 - ]: Procedure

HINT:

Perform this procedure only when replacement of the oil cooler bracket is necessary.

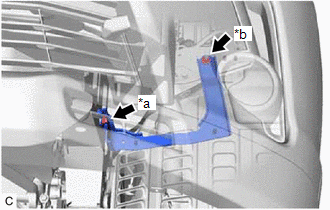

1. Install the oil cooler bracket to the vehicle body with the bolt and nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Bolt
   *b	Nut

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

   NOTE:

   Tightening order: Temporarily tighten bolt → Fully tighten nut → Fully tighten bolt

1. Install the oil cooler assembly to the oil cooler bracket with the 2 nuts.

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

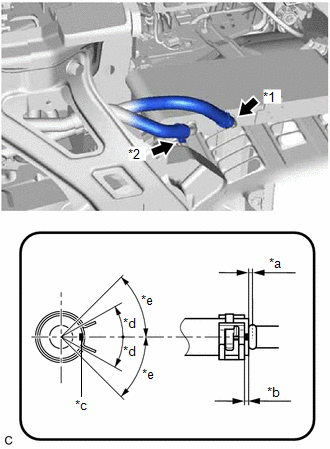

1. Connect the outlet No. 2 oil cooler hose and No. 2 transmission oil cooler hose to the oil cooler assembly and slide the 2 clips to secure them.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Outlet No. 2 Oil Cooler Hose
   *2	No. 2 Transmission Oil Cooler Hose
   *a	0 to 3 mm (0 to 0.118 in.)
   *b	2 to 7 mm (0.0787 to 0.276 in.)
   *c	Paint Mark (Lower Side of Vehicle)
   *d	30° (Paint Mark Location)
   *e	45° (Claw of Clip Location)

   NOTE:

   • Make sure to slide the outlet No. 2 oil cooler hose and No. 2 transmission oil cooler hose until each contacts the hose stopper of the oil cooler assembly.
   • Make sure that each paint mark and the claws of each clip are within the location shown in the illustration.

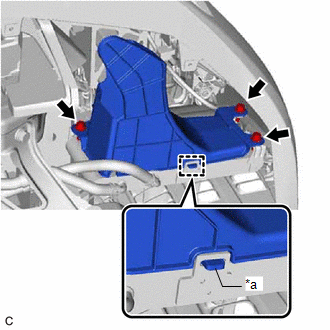

1. Engage the guide to temporarily install the transmission oil cooler air duct to the oil cooler assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Guide

2. Install the transmission oil cooler air duct to the oil cooler assembly with the 3 bolts.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

3. Return the front fender liner LH to its original position.
4. Install the front fender liner LH with the bolt.

Refer to ADJUSTMENT [11/2016 - ]

Refer to PROCEDURE - Step 103
