Components [11/2016 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

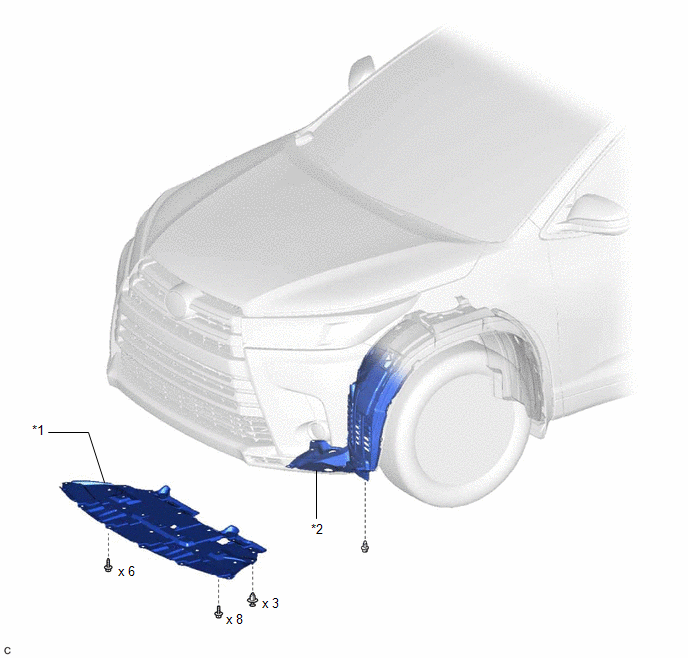

Fig 1: Air Cooled Oil Cooler Replacement Components (1 Of 2)
GTY689086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE UNDER COVER *2 FRONT FENDER LINER LH

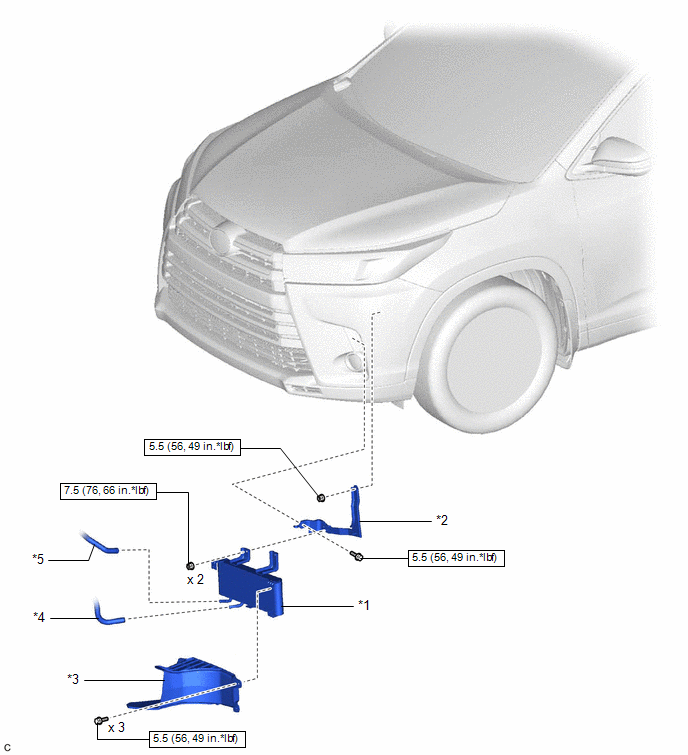

Fig 1: Air Cooled Oil Cooler Replacement Components With Torque Specifications (2 Of 2)
GTY696129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL COOLER ASSEMBLY *2 OIL COOLER BRACKET
*3 TRANSMISSION OIL COOLER AIR DUCT *4 OUTLET NO. 2 OIL COOLER HOSE
*5 NO. 2 TRANSMISSION OIL COOLER HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
