Section 28 (SFI System [1AR-FE] - Diagnostic Codes - (Except Hybrid) (5 Of 8))
>>
SFI System
>>
DTC P2195: Oxygen (A/F) Sensor Signal Stuck Lean (Bank 1 Sensor 1); DTC P2196: Oxygen (A/F) Sensor Signal Stuck Rich (Bank 1 Sensor 1) [11/2016 - ]
>>

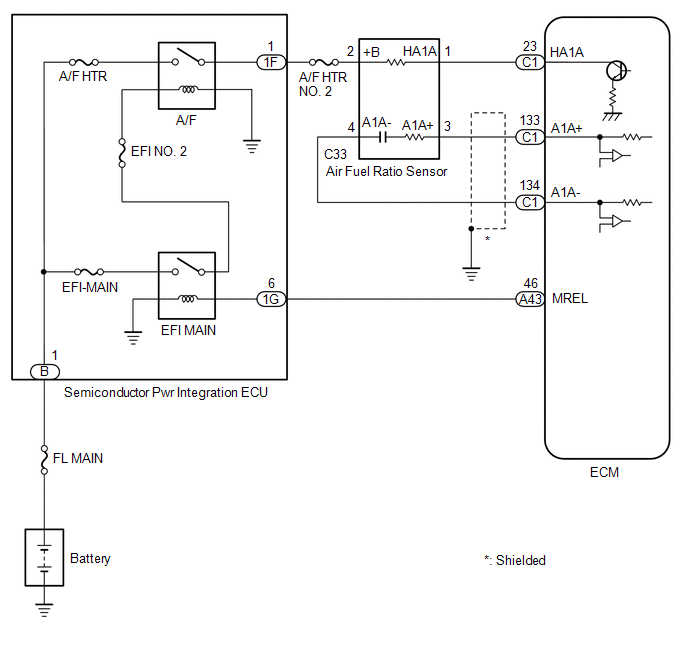

Wiring Diagram
DTC P2195: Oxygen (A/F) Sensor Signal Stuck Lean (Bank 1 Sensor 1); DTC P2196: Oxygen (A/F) Sensor Signal Stuck Rich (Bank 1 Sensor 1) [11/2016 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
