Section 26 (Charging System (1AR-FE) - Diagnostics & Symptom Tests (Except Hybrid))
>>
Charging System
>>
System Diagram [12/2013 - ]
>>
System Diagram [12/2013 - ]
System Diagram [12/2013 - ]
WARNING:
This page is about a different variant/trim than selected.

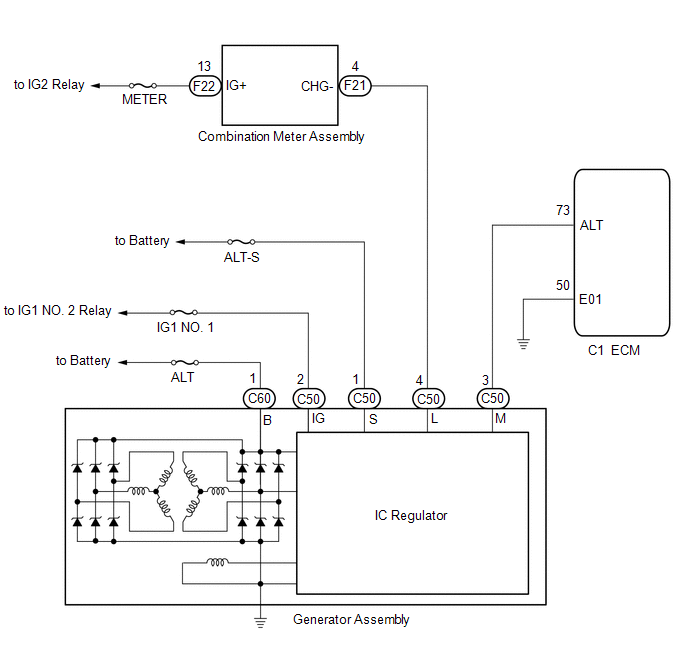

Fig 1: Charging System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
