Components [12/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT FENDER LINER LH |
| *3 | NO. 1 ENGINE UNDER COVER | - | - |

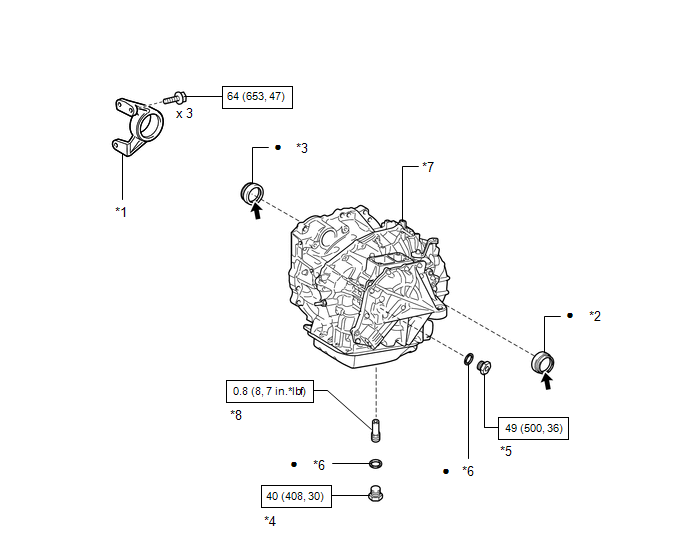

| Callout | Description | Callout | Description |
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | FRONT DRIVE SHAFT OIL SEAL LH |
| *3 | FRONT DRIVE SHAFT OIL SEAL RH | *4 | OVERFLOW PLUG |
| *5 | REFILL PLUG | *6 | GASKET |
| *7 | AUTOMATIC TRANSAXLE ASSEMBLY | *8 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | N*m (kgf*cm, ft.*lbf): Specified torque | |
| MP grease | - | - |
