Parts Location [12/2013 - 11/2016]: Illustration
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

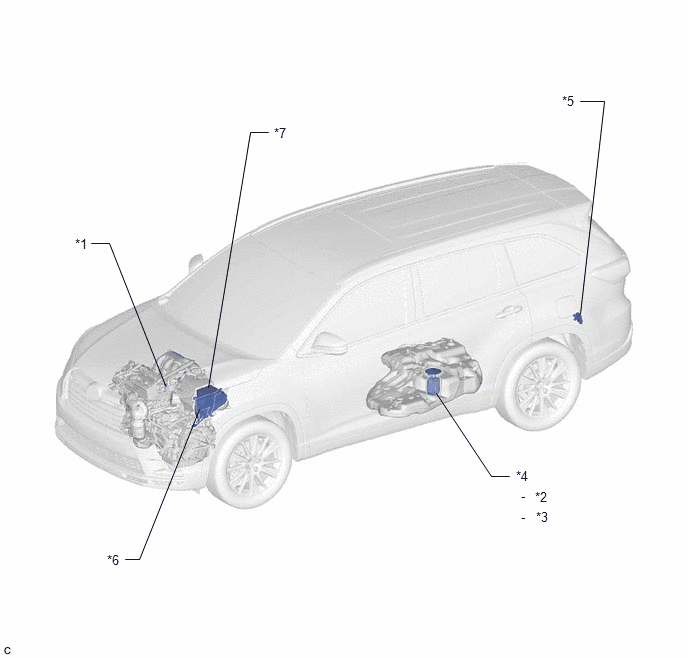

| *1 |
FUEL INJECTOR ASSEMBLY |
*2 |
FUEL PUMP |
| *3 |
FUEL SENDER GAUGE ASSEMBLY |
*4 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *5 |
FUEL PUMP CONTROL ECU ASSEMBLY |
*6 |
ECM |
| *7 |
ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- FUEL PMP FUSE
- INJ FUSE |
- |
- |
