Components [12/2013 - 11/2016]: Illustration
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | DECK BOARD ASSEMBLY | *2 | DECK SIDE TRIM BOX LH |
| *3 | NO. 3 DECK BOARD SUB-ASSEMBLY | *4 | REAR DECK FLOOR BOX |
| *5 | REAR FLOOR FINISH PLATE | - | - |

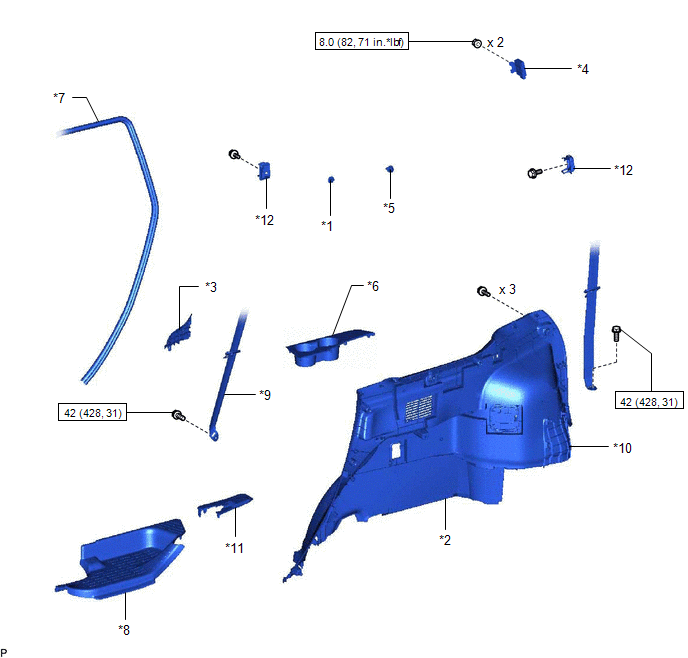

| Callout | Description | Callout | Description |
| *1 | DECK TRIM POCKET COVER | *2 | DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 | FRONT DECK SIDE TRIM COVER LH | *4 | FUEL PUMP CONTROL ECU ASSEMBLY |
| *5 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *6 | NO. 2 DECK SIDE TRIM COVER |
| *7 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *8 | REAR DOOR SCUFF PLATE LH |
| *9 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH | *10 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH |
| *11 | REAR OUTER SEAT TRACK BRACKET COVER LH | *12 | ROPE HOOK |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
