Components [12/2013 - 11/2016]: Illustration
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

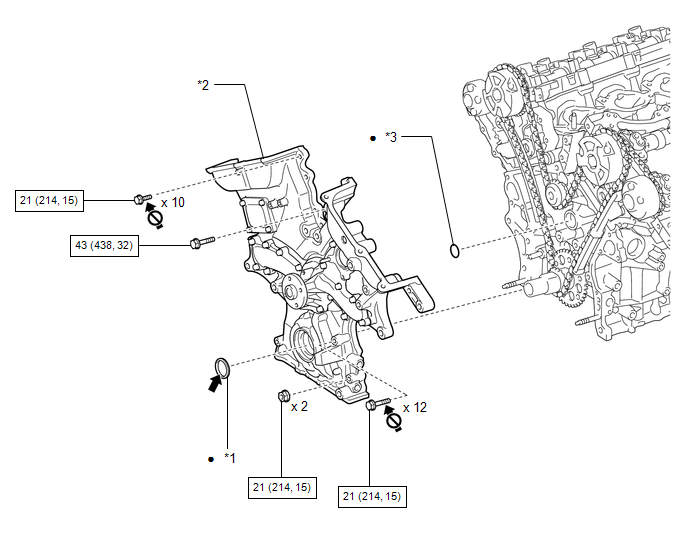

| Callout | Description | Callout | Description |
| *1 | TIMING CHAIN CASE OIL SEAL | *2 | TIMING CHAIN COVER SUB-ASSEMBLY |
| *3 | GASKET | - | - |
| N*m (kgf*cm, ft*lbf): Specified torque | • | Non-reusable part | |
| MP Grease | Do not apply lubricants to the threaded parts |

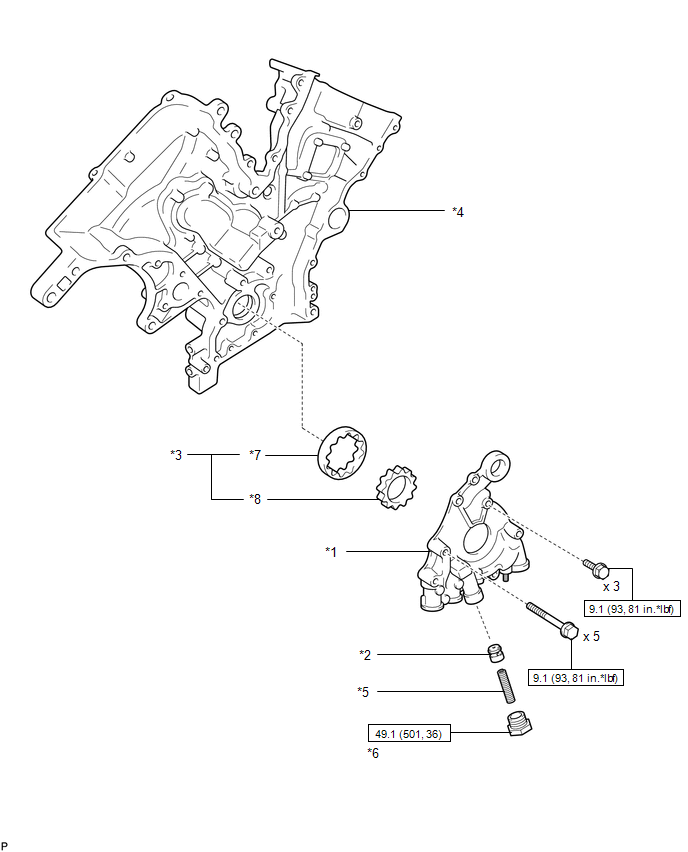

| Callout | Description | Callout | Description |
| *1 | OIL PUMP COVER | *2 | OIL PUMP RELIEF VALVE |
| *3 | OIL PUMP ROTOR SET | *4 | TIMING CHAIN COVER SUB-ASSEMBLY |
| *5 | OIL PUMP RELIEF VALVE SPRING | *6 | OIL PUMP RELIEF VALVE PLUG |
| *7 | DRIVEN ROTOR | *8 | DRIVE ROTOR |
| N*m (kgf*cm, ft*lbf): Specified torque | - | - |
