Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

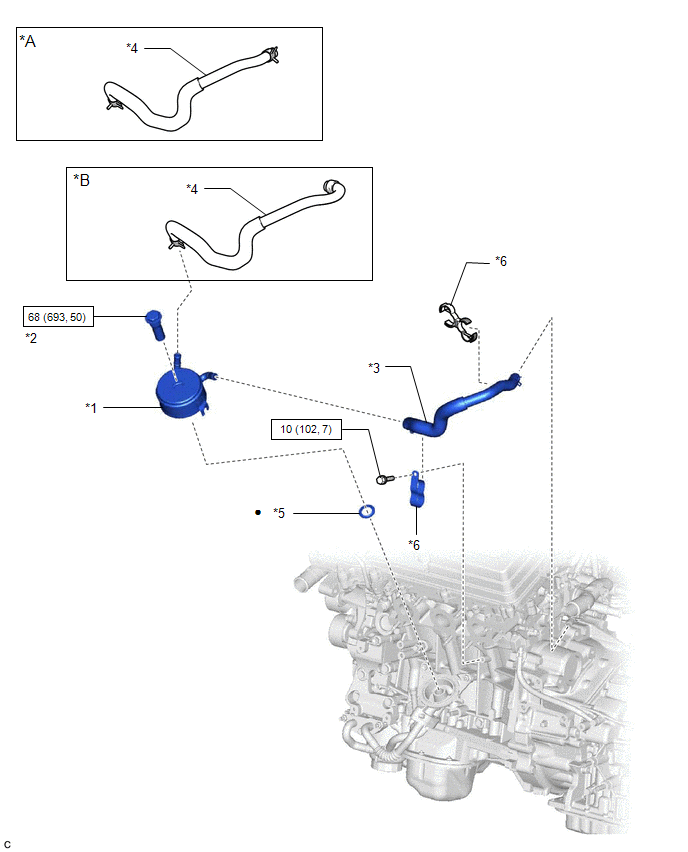

Fig 1: Engine Oil Cooler Replacement Components With Torque Specifications
GTY454372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 OIL COOLER ASSEMBLY *2 OIL COOLER UNION BOLT
*3 NO. 4 WATER BY-PASS HOSE *4 NO. 5 WATER BY-PASS HOSE
*5 O-RING *6 HOSE CLAMP
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
