Components [12/2013 - 11/2016]: Illustration
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

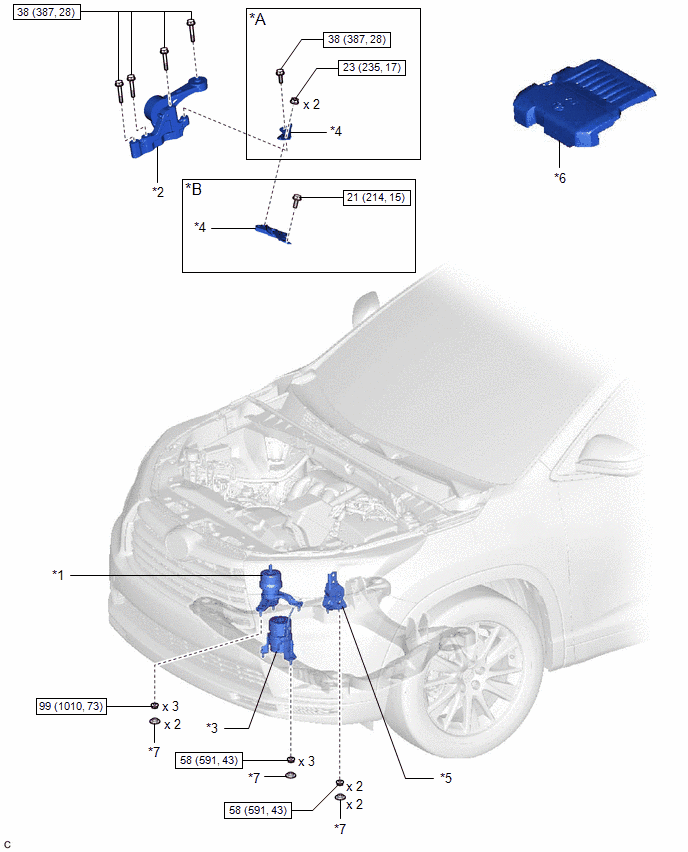

| Callout |
Description |
Callout |
Description |
| *A |
for Engine Mounting Stay Side |
*B |
for Intake Manifold Side |
| *1 |
ENGINE MOUNTING INSULATOR RH |
*2 |
ENGINE MOVING CONTROL ROD BRACKET |
| *3 |
FRONT ENGINE MOUNTING INSULATOR ASSEMBLY |
*4 |
NO. 2 ENGINE MOUNTING STAY RH |
| *5 |
REAR ENGINE MOUNTING INSULATOR ASSEMBLY |
*6 |
V-BANK COVER SUB-ASSEMBLY |
| *7 |
HOLE PLUG |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

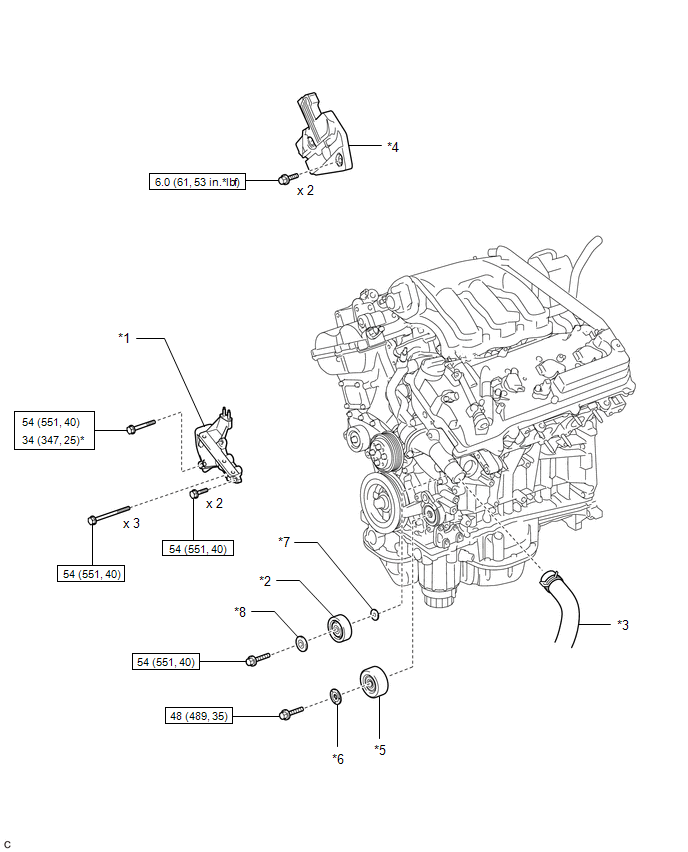

| Callout |
Description |
Callout |
Description |
| *1 |
FRONT NO. 1 ENGINE MOUNTING BRACKET LH |
*2 |
NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *3 |
NO. 2 RADIATOR HOSE |
*4 |
NO. 2 TIMING GEAR COVER |
| *5 |
V-RIBBED BELT TENSIONER PULLEY |
*6 |
DUST SHIELD |
| *7 |
IDLER PULLEY COVER PLATE |
*8 |
NO. 2 IDLER PULLEY COVER PLATE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with SST |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

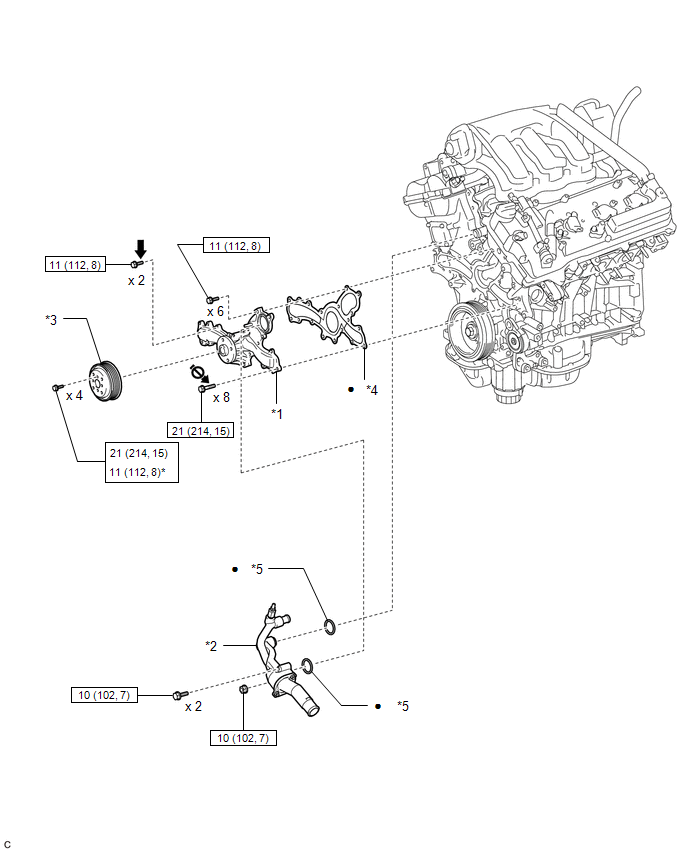

| Callout |
Description |
Callout |
Description |
| *1 |
ENGINE WATER PUMP ASSEMBLY |
*2 |
WATER INLET HOUSING |
| *3 |
WATER PUMP PULLEY |
*4 |
WATER PUMP GASKET |
| *5 |
O-RING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
|
Adhesive 1344 |
| * |
Precoated part |
|
Do not apply lubricants to the threaded parts |
