Components [12/2013 - 11/2016]: Illustration
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
V-BANK COVER SUB-ASSEMBLY |
*2 |
NO. 1 ENGINE UNDER COVER |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

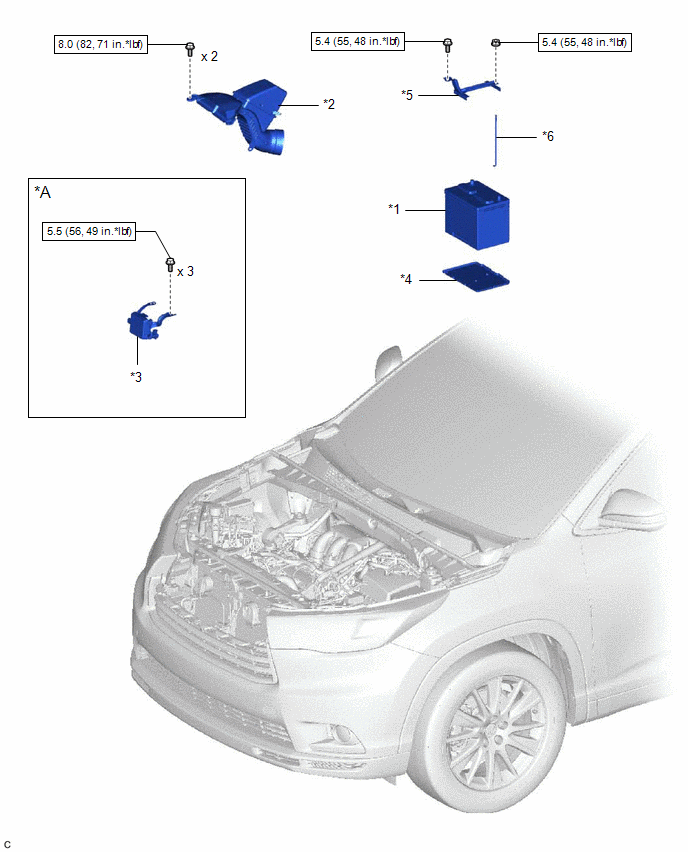

| *A |
w/ Dynamic Radar Cruise Control System |
- |
- |
| *1 |
BATTERY |
*2 |
INLET AIR CLEANER ASSEMBLY |
| *3 |
MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
*4 |
BATTERY TRAY |
| *5 |
BATTERY CLAMP |
*6 |
BATTERY CLAMP BOLT |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

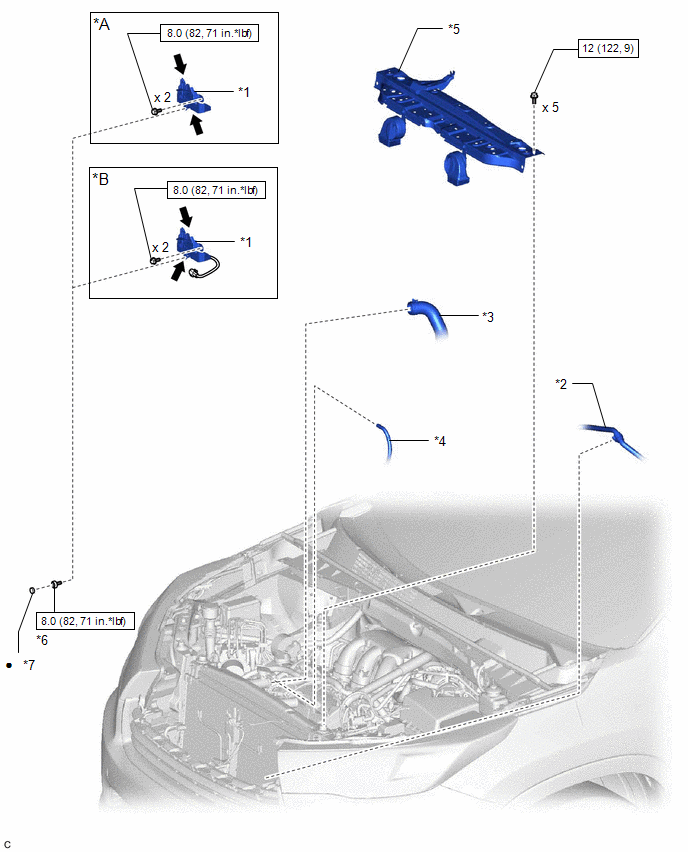

| *A |
w/o Engine Hood Courtesy Switch |
*B |
w/ Engine Hood Courtesy Switch |
| *1 |
HOOD LOCK ASSEMBLY |
*2 |
INLET NO. 1 OIL COOLER HOSE |
| *3 |
NO. 1 RADIATOR HOSE |
*4 |
RADIATOR RESERVE TANK HOSE |
| *5 |
UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
*6 |
HOOD LOCK BOLT |
| *7 |
HOOD LOCK NUT CAP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

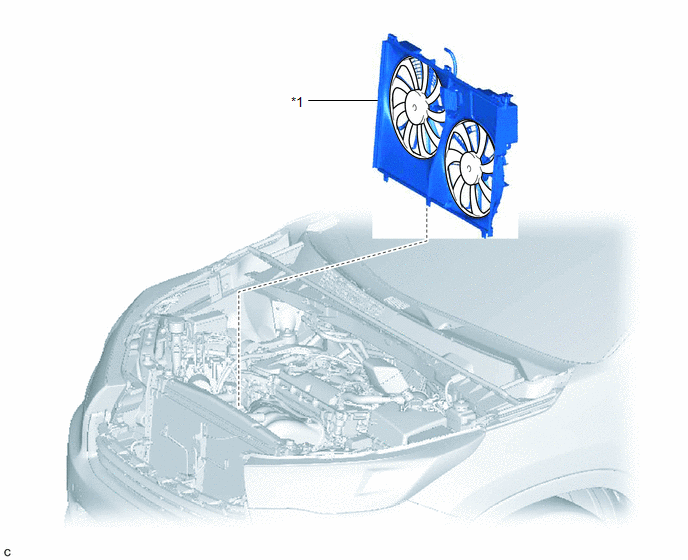

| *1 |
FAN SHROUD ASSEMBLY |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

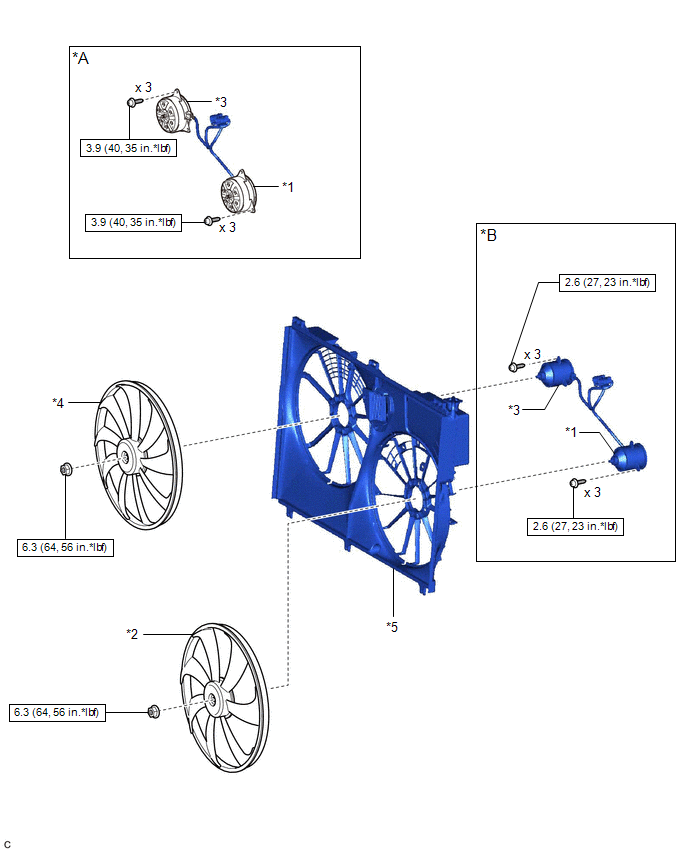

| *A |
for 200 W Type |
*B |
for 100 W Type |
| *1 |
COOLING FAN MOTOR |
*2 |
FAN |
| *3 |
NO. 2 COOLING FAN MOTOR |
*4 |
NO. 2 FAN |
| *5 |
FAN SHROUD |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
