Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT FLOOR COVER LH

    See step  3

  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    1. Remove the 2 bolts and tail exhaust pipe assembly from the center exhaust pipe assembly (TWC: Rear Catalyst).
      GTY446513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the tail exhaust pipe assembly from the 4 exhaust pipe supports.
      GTY446512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the center exhaust pipe assembly (TWC: Rear Catalyst).
  3. REMOVE CENTER EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    1. Remove the 2 bolts, 2 compression springs and center exhaust pipe assembly (TWC: Rear Catalyst) from the front No. 3 exhaust pipe sub-assembly.

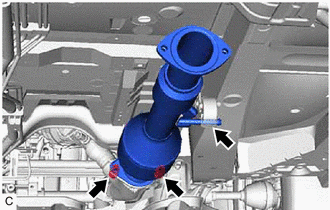

      GTY443928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the center exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust pipe support.
    3. Remove the gasket from the front No. 3 exhaust pipe sub-assembly.
  4. REMOVE HEATED OXYGEN SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 3

  5. REMOVE HEATED OXYGEN SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 1

  6. REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY
    1. Remove the 2 bolts, 2 nuts and front No. 3 exhaust pipe sub-assembly.

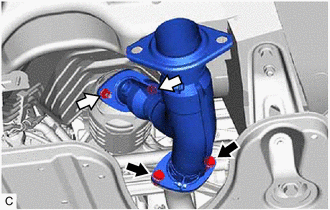

      GTY443923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 gaskets from the front No. 3 exhaust pipe sub-assembly.
  7. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)
    1. Remove the 2 bolts and No. 1 exhaust pipe support bracket.

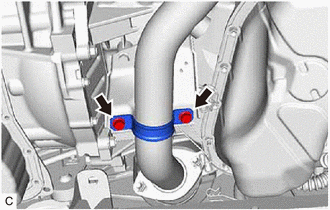

      GTY444980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Remove the 2 nuts and front exhaust pipe assembly from the exhaust manifold sub-assembly LH (TWC: Front Catalyst).

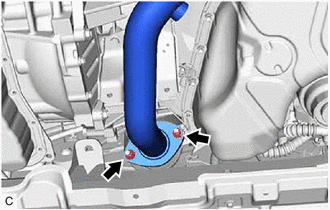

      GTY444998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the front exhaust pipe assembly.
