Components [12/2013 - 11/2016]: Illustration
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

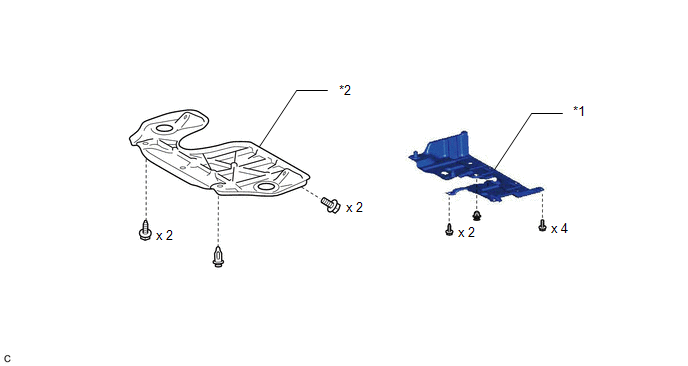

| *1 |
FRONT FLOOR COVER LH |
*2 |
NO. 2 ENGINE UNDER COVER |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

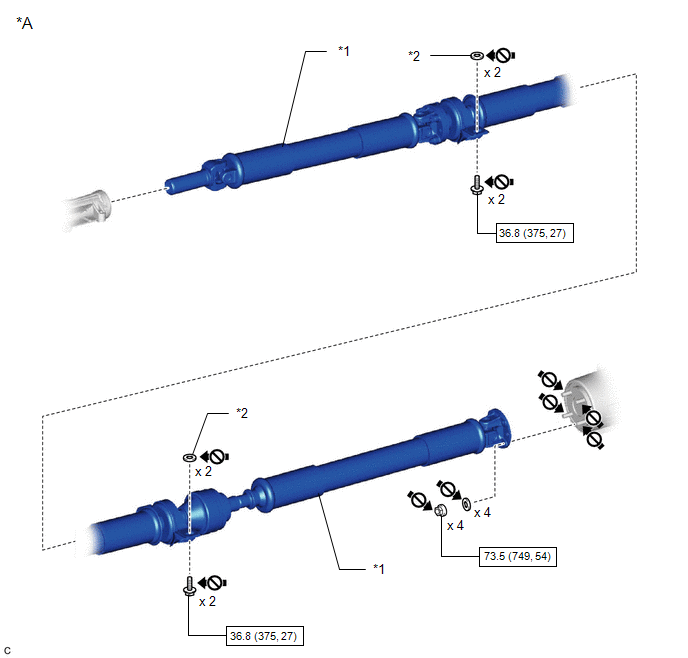

| *A |
for 4WD |
- |
- |
| *1 |
PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY |
*2 |
CENTER NO. 2 SUPPORT BEARING WASHER |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
|
Do not apply lubricants |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

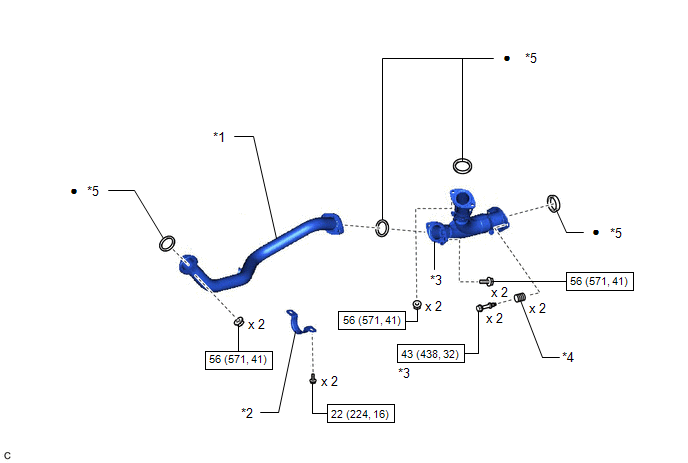

| *1 |
FRONT EXHAUST PIPE ASSEMBLY |
*2 |
NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) |
| *3 |
FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY |
*4 |
COMPRESSION SPRING |
| *5 |
GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

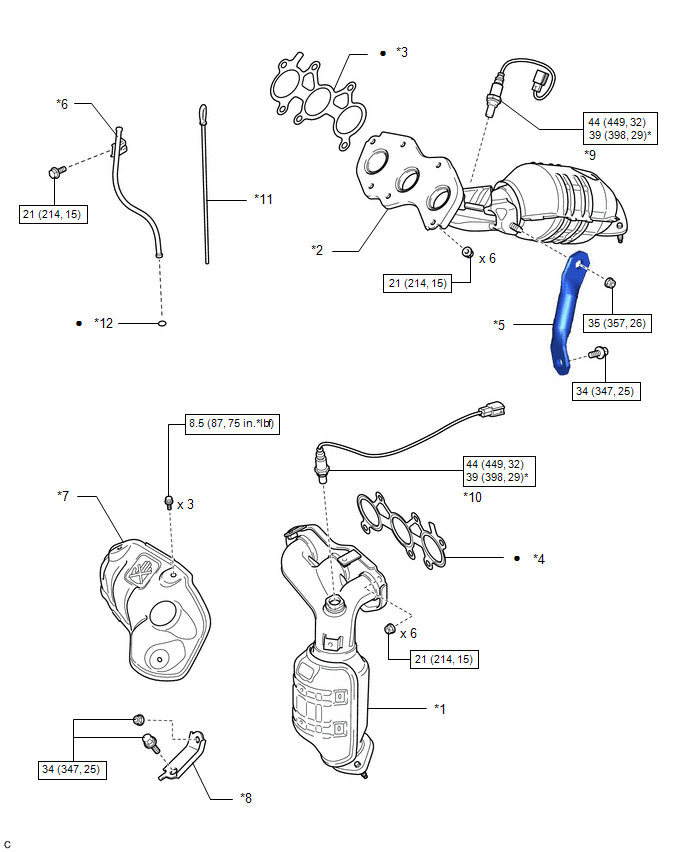

| *1 |
EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) |
*2 |
EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst) |
| *3 |
EXHAUST MANIFOLD TO HEAD GASKET |
*4 |
EXHAUST MANIFOLD TO HEAD GASKET LH |
| *5 |
MANIFOLD STAY |
*6 |
NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE |
| *7 |
NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
*8 |
NO. 2 MANIFOLD STAY |
| *9 |
AIR FUEL RATIO SENSOR (for Bank 1) |
*10 |
AIR FUEL RATIO SENSOR (for Bank 2) |
| *11 |
ENGINE OIL LEVEL DIPSTICK |
*12 |
O-RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
| * |
For use with SST |
- |
- |
