Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Differential Oil Seal (for LH Side) Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT FENDER APRON SEAL LH	*2	FRONT FENDER LINER LH
*3	NO. 1 ENGINE UNDER COVER	-	-

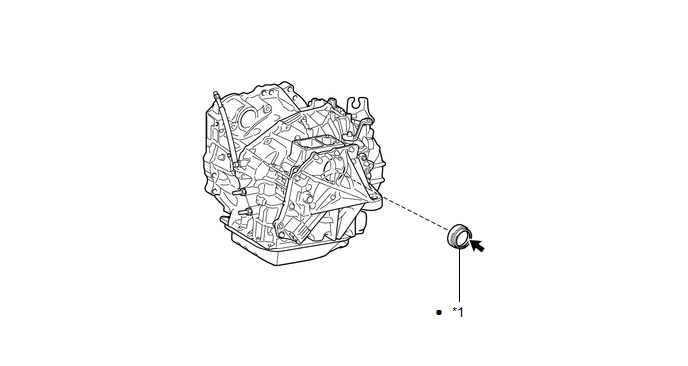

Fig 1: Differential Oil Seal (for LH Side) Replacement Components (2 Of 2)

*1	FRONT DRIVE SHAFT OIL SEAL LH	-	-
•	Non-reusable part		MP grease
