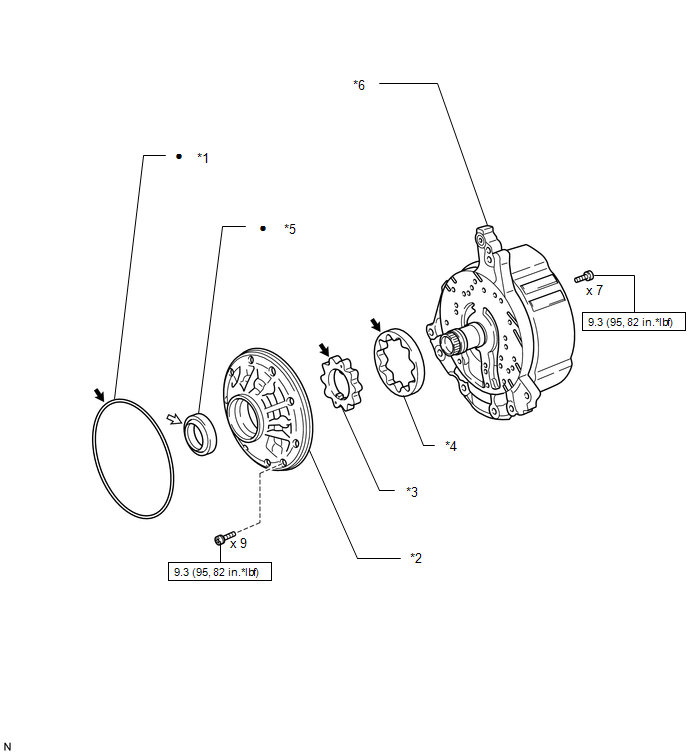

Components [12/2013 - 11/2016]: Illustration
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
| *1 | FRONT OIL PUMP BODY O-RING | *2 | FRONT OIL PUMP BODY SUB-ASSEMBLY |
| *3 | FRONT OIL PUMP DRIVE GEAR | *4 | FRONT OIL PUMP DRIVEN GEAR |
| *5 | FRONT OIL PUMP OIL SEAL | *6 | STATOR SHAFT ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| ATF WS | MP grease |
