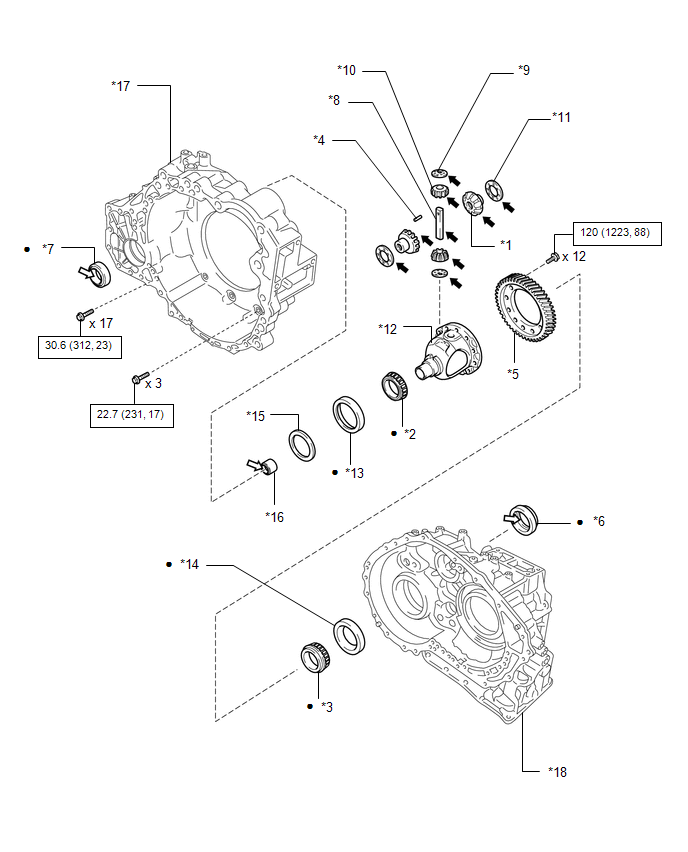

Components [12/2013 - 08/2014]: Illustration
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
| *1 | DIFFERENTIAL SIDE GEAR | *2 | Front DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING |
| *3 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING | *4 | FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN |
| *5 | FRONT DIFFERENTIAL RING GEAR | *6 | FRONT DRIVE SHAFT OIL SEAL LH |
| *7 | FRONT DRIVE SHAFT OIL SEAL RH | *8 | FRONT NO. 1 DIFFERENTIAL PINION SHAFT |
| *9 | FRONT DIFFERENTIAL PINION THRUST WASHER | *10 | FRONT DIFFERENTIAL PINION |
| *11 | FRONT NO. 1 DIFFERENTIAL SIDE GEAR THRUST WASHER | *12 | DIFFERENTIAL CASE |
| *13 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING OUTER RACE | *14 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING OUTER RACE |
| *15 | SHIM | *16 | FRONT TRANSAXLE CASE OIL SEAL (for Inside) |
| *17 | TRANSAXLE HOUSING | *18 | TRANSAXLE CASE SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| ATF WS | MP grease |
