System Diagram [12/2013 - 11/2016]

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

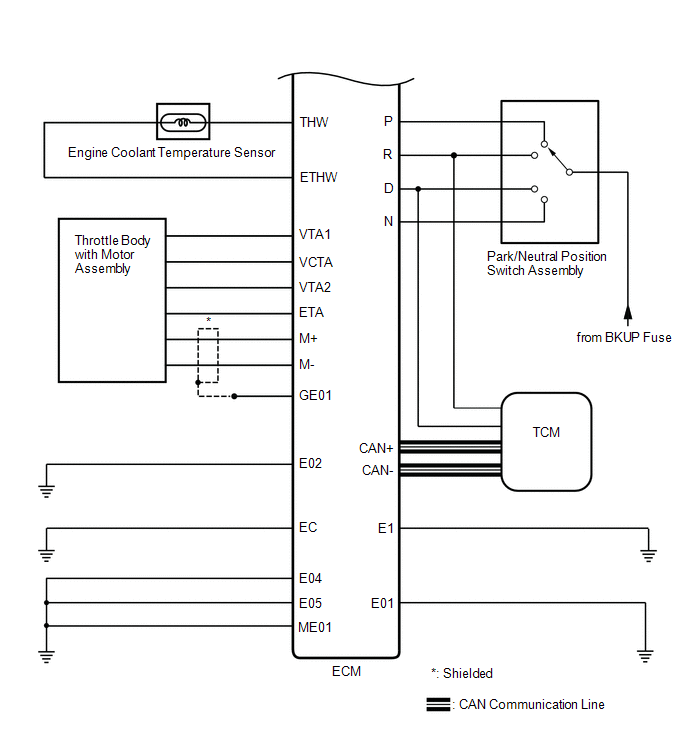

Fig 1: SFI System Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

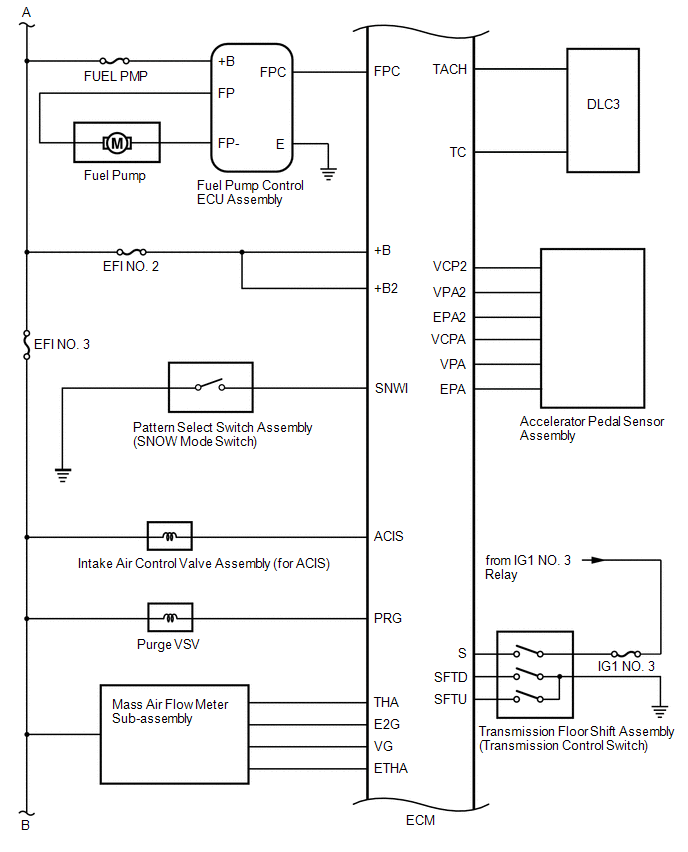

Fig 2: SFI System Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

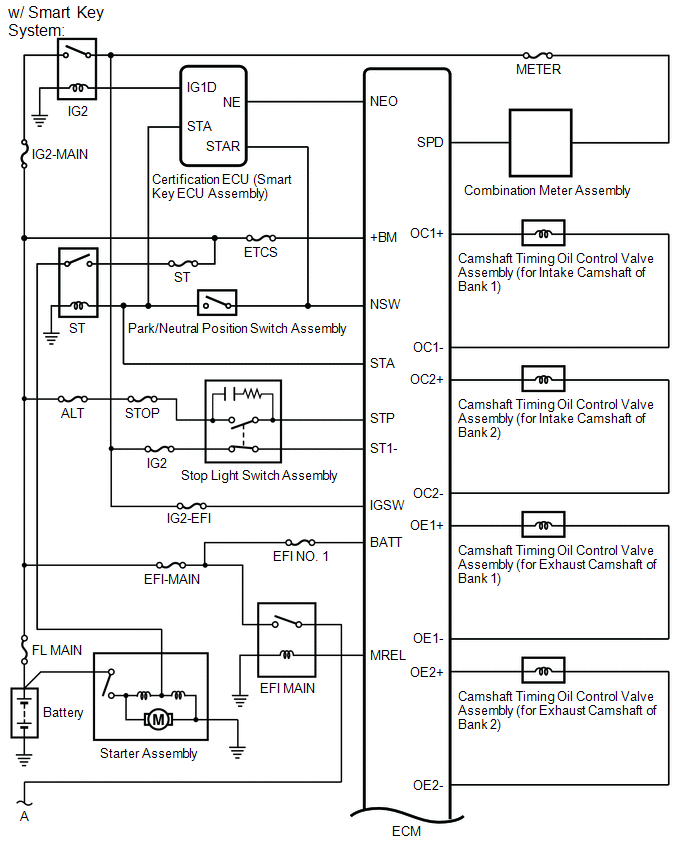

Fig 3: SFI System Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

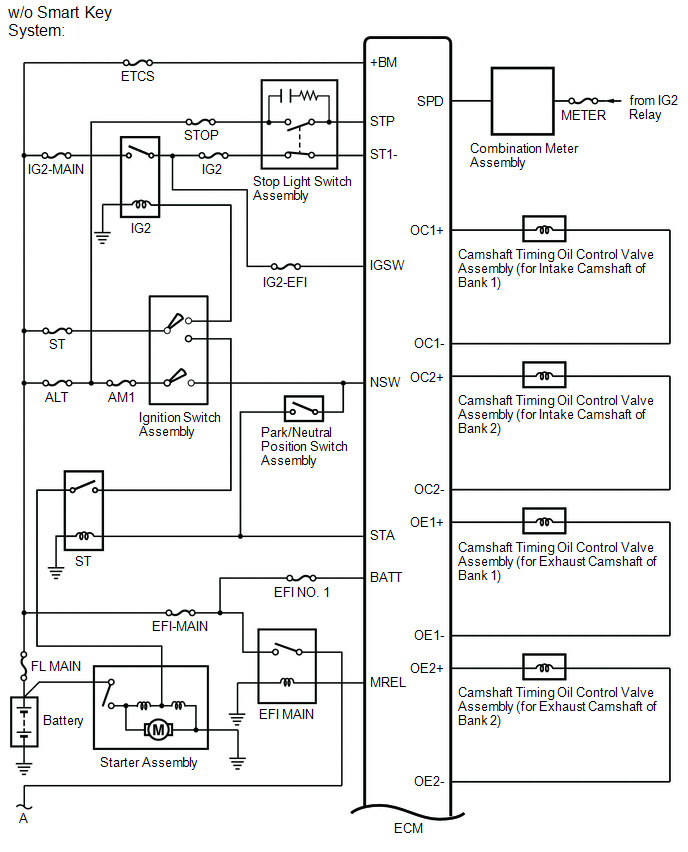

Fig 4: SFI System Wiring Diagram (4 Of 6)

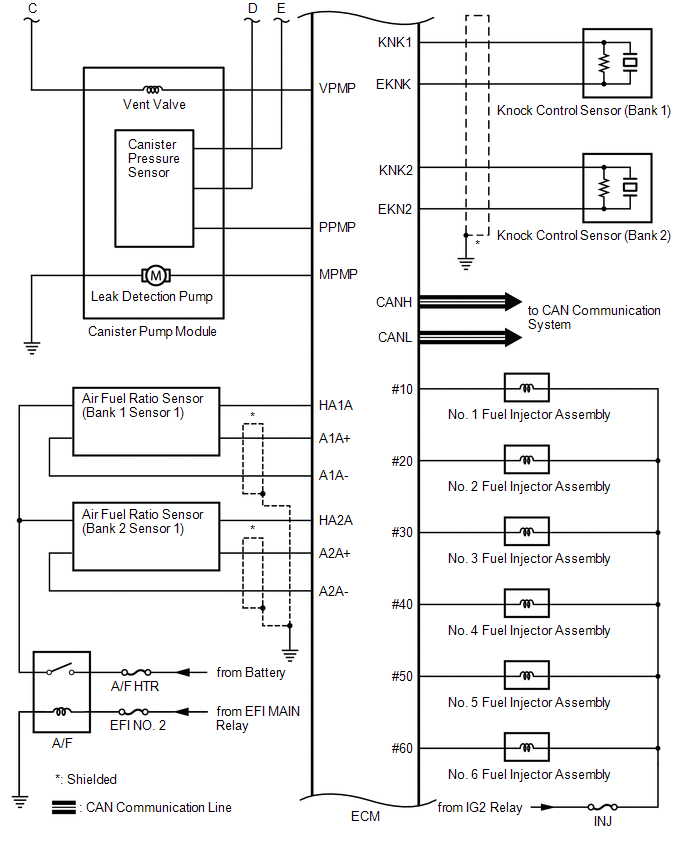

Fig 5: SFI System Wiring Diagram (5 Of 6)

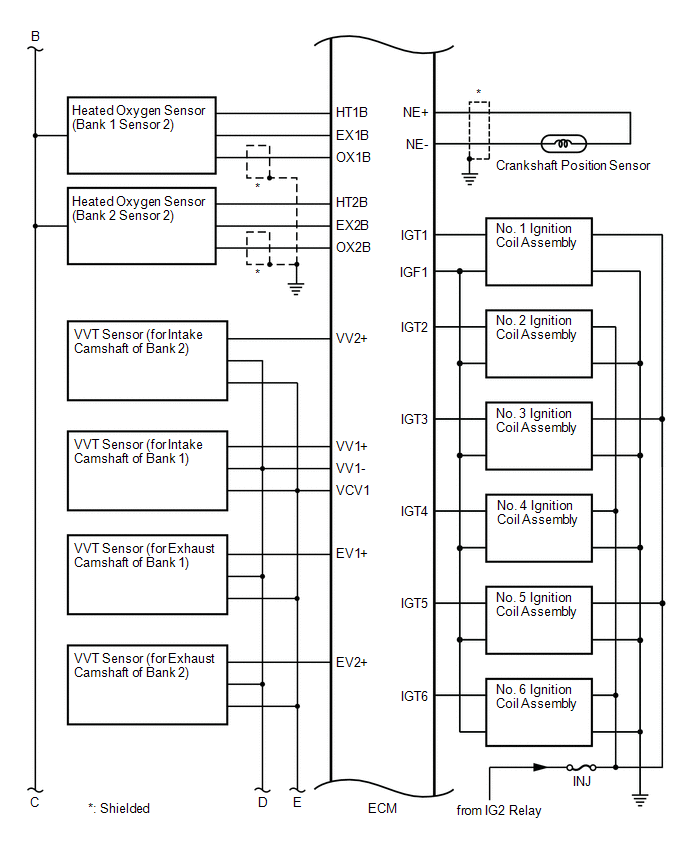

Fig 6: SFI System Wiring Diagram (6 Of 6)
