Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

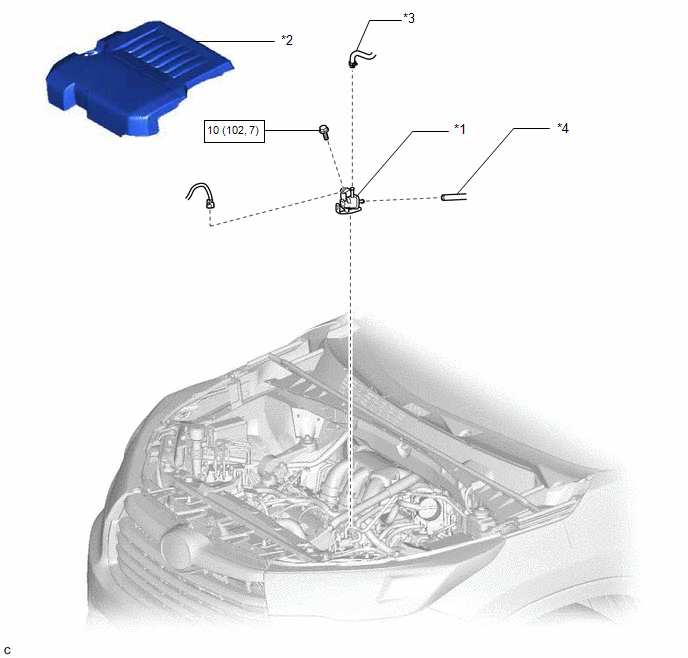

Fig 1: Purge Valve Replacement Components With Torque Specifications
GTY425030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PURGE VALVE (PURGE VSV) *2 V-BANK COVER SUB-ASSEMBLY
*3 FUEL VAPOR FEED HOSE ASSEMBLY *4 NO. 1 FUEL VAPOR FEED HOSE
N*m (kgf*cm, ft.*lbf): Specified torque - -
