Parts Location [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

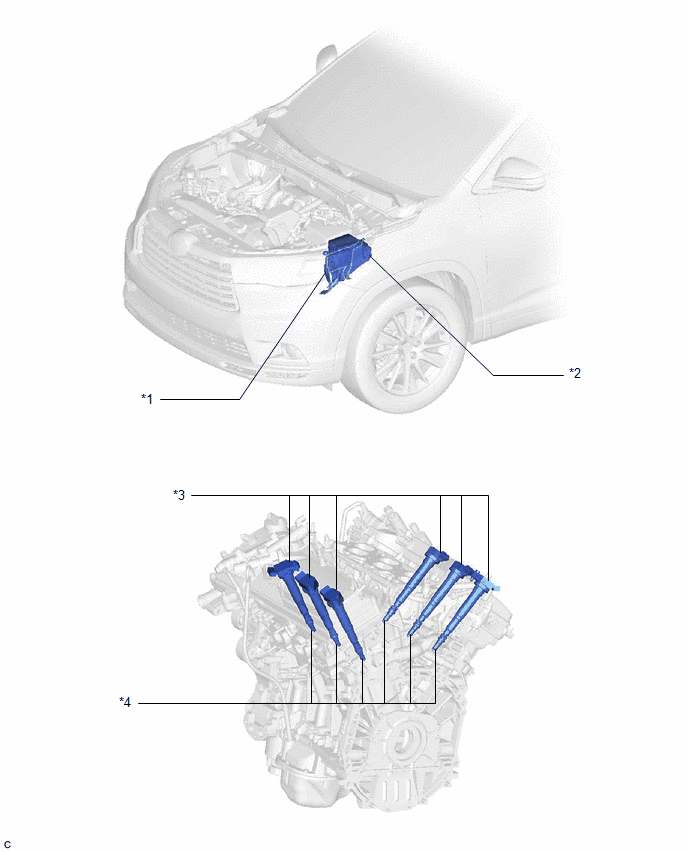

Fig 1: Ignition System Components Location
GTY439470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- IG2 RELAY
- IG2-MAIN FUSE
- INJ FUSE
*3 IGNITION COIL ASSEMBLY *4 SPARK PLUG
