Removal [12/2013 - 11/2016]: Procedure
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for 2WD)
Refer to REMOVAL [12/2013 - 11/2016]
- REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for AWD)
Refer to REMOVAL [12/2013 - 11/2016]
- REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

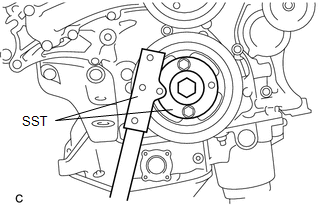

- Using SST, hold the crankshaft pulley.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- SST: 09213-70011
- 09213-70020
- SST: 09330-00021
- Remove the 8 bolts, the rear drive plate spacer, the drive plate and ring gear sub-assembly and the front drive plate spacer.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR ENGINE OIL SEAL

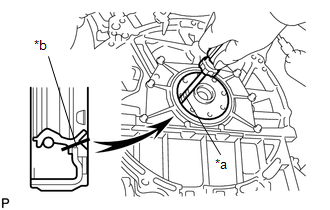

- Using a knife, cut off the lip of the rear engine oil seal.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Protective Tape |
| *b |
Cut Position |
- Using a screwdriver, pry out the rear engine oil seal.
NOTE:
Be careful not to damage the crankshaft.
HINT:
Tape the screwdriver tip before use.
