Components [12/2013 - 11/2015]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Unit Replacement Components With Torque Specifications (1 Of 15)
GTY454231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD *B for AWD
*1 REAR ENGINE MOUNTING BRACKET *2 ENGINE MOUNTING BRACKET RH
*3 GENERATOR ASSEMBLY *4 NO. 1 VACUUM SWITCHING VALVE
*5 THROTTLE BODY BRACKET *6 NO. 1 SURGE TANK STAY
N*m (kgf*cm, ft.*lbf): Specified torque Do not apply lubricants to the threaded parts


Fig 1: Engine Unit Replacement Components With Torque Specifications (2 Of 15)
GTY427941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) *2 EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)
*3 IGNITION COIL ASSEMBLY *4 NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
*5 NO. 2 IDLER PULLEY SUB-ASSEMBLY *6 NO. 2 MANIFOLD STAY
*7 V-RIBBED BELT TENSIONER ASSEMBLY *8 WATER PUMP PULLEY
*9 NO. 2 IDLER PULLEY COVER PLATE *10 IDLER PULLEY COVER PLATE
*11 EXHAUST MANIFOLD TO HEAD GASKET *12 EXHAUST MANIFOLD TO HEAD GASKET LH
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


Fig 1: Engine Unit Replacement Components With Torque Specifications (3 Of 15)
GTY436242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Oil Cooler - -
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 ENGINE OIL LEVEL DIPSTICK GUIDE
*3 ENGINE OIL PRESSURE SWITCH ASSEMBLY *4 KNOCK CONTROL SENSOR
*5 KNOCK CONTROL SENSOR WIRE *6 NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE
*7 NO. 2 TIMING GEAR COVER *8 ENGINE OIL LEVEL DIPSTICK
*9 O-RING *10 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part


Fig 1: Engine Unit Replacement Components With Torque Specifications (4 Of 15)
GTY442902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Oil Cooler - -
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 ENGINE OIL LEVEL DIPSTICK GUIDE
*3 ENGINE OIL PRESSURE SWITCH ASSEMBLY *4 KNOCK CONTROL SENSOR
*5 KNOCK CONTROL SENSOR WIRE *6 NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE
*7 NO. 2 TIMING GEAR COVER *8 ENGINE OIL LEVEL DIPSTICK
*9 O-RING *10 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part


Fig 1: Engine Unit Replacement Components With Torque Specifications (5 Of 15)
GTY446880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Bank 1 - -
*1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1) *2 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1)
*3 CYLINDER HEAD COVER SUB-ASSEMBLY *4 OIL PIPE
*5 SPARK PLUG *6 CYLINDER HEAD COVER GASKET
*7 OIL CONTROL VALVE FILTER RH *8 CAMSHAFT POSITION SENSOR (for Intake Side of Bank 1)
*9 CAMSHAFT POSITION SENSOR (for Exhaust Side of Bank 1) *10 SEAL WASHER
*11 O-RING *12 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


Fig 1: Engine Unit Replacement Components With Torque Specifications (6 Of 15)
GTY438289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Bank 2 - -
*1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2) *2 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2)
*3 CYLINDER HEAD COVER SUB-ASSEMBLY LH *4 NO. 1 OIL PIPE
*5 OIL FILLER CAP SUB-ASSEMBLY *6 SPARK PLUG
*7 VENTILATION VALVE SUB-ASSEMBLY *8 CAMSHAFT POSITION SENSOR (for Intake Side of Bank 2)
*9 CAMSHAFT POSITION SENSOR (for Exhaust Side of Bank 2) *10 NO. 2 CYLINDER HEAD COVER GASKET
*11 OIL CONTROL VALVE FILTER LH *12 OIL FILLER CAP GASKET
*13 O-RING *14 SEAL WASHER
*15 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part


Fig 1: Engine Unit Replacement Components With Torque Specifications (7 Of 15)
GTY447776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Oil Cooler *B Type A
*C Type B - -
*1 NO. 1 OIL COOLER BRACKET *2 OIL COOLER ASSEMBLY
*3 NO. 5 WATER BY-PASS HOSE *4 NO. 4 WATER BY-PASS HOSE
*5 OIL COOLER PIPE *6 OIL COOLER UNION BOLT
*7 O-RING *8 GASKET
*9 HOSE CLAMP - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


Fig 1: Engine Unit Replacement Components With Torque Specifications (8 Of 15)
GTY455078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Taper Screw Plug *B w/o Taper Screw Plug
*1 CRANKSHAFT POSITION SENSOR *2 CYLINDER BLOCK WATER DRAIN COCK SUB-ASSEMBLY
*3 REAR ENGINE OIL SEAL *4 REAR ENGINE OIL SEAL RETAINER
*5 NO. 1 FRONT ENGINE MOUNTING BRACKET LH *6 TAPER SCREW PLUG
*7 WATER INLET HOUSING *8 WATER INLET
*9 WATER OUTLET *10 CYLINDER BLOCK WATER DRAIN COCK PLUG
*11 DRAIN COCK PLUG *12 DRAIN COCK ASSEMBLY
*13 THERMOSTAT *14 O-RING
*15 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part


Fig 1: Engine Unit Replacement Components With Torque Specifications (9 Of 15)
GTY440052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Oil Cooler - -
*1 NO. 1 OIL PAN BAFFLE PLATE *2 NO. 2 OIL PAN SUB-ASSEMBLY
*3 OIL FILTER CAP ASSEMBLY *4 OIL PAN DRAIN PLUG
*5 OIL PAN SUB-ASSEMBLY *6 OIL STRAINER SUB-ASSEMBLY
*7 OIL FILTER ELEMENT *8 OIL PAN DRAIN PLUG GASKET
*9 DRAIN PLUG *10 GASKET
*11 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


Fig 1: Engine Unit Replacement Components With Torque Specifications (10 Of 15)
GTY425036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Oil Cooler - -
*1 NO. 1 OIL PAN BAFFLE PLATE *2 NO. 2 OIL PAN SUB-ASSEMBLY
*3 OIL FILTER CAP ASSEMBLY *4 OIL PAN DRAIN PLUG
*5 OIL PAN SUB-ASSEMBLY *6 OIL STRAINER SUB-ASSEMBLY
*7 OIL FILTER ELEMENT *8 OIL PAN DRAIN PLUG GASKET
*9 DRAIN PLUG *10 GASKET
*11 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

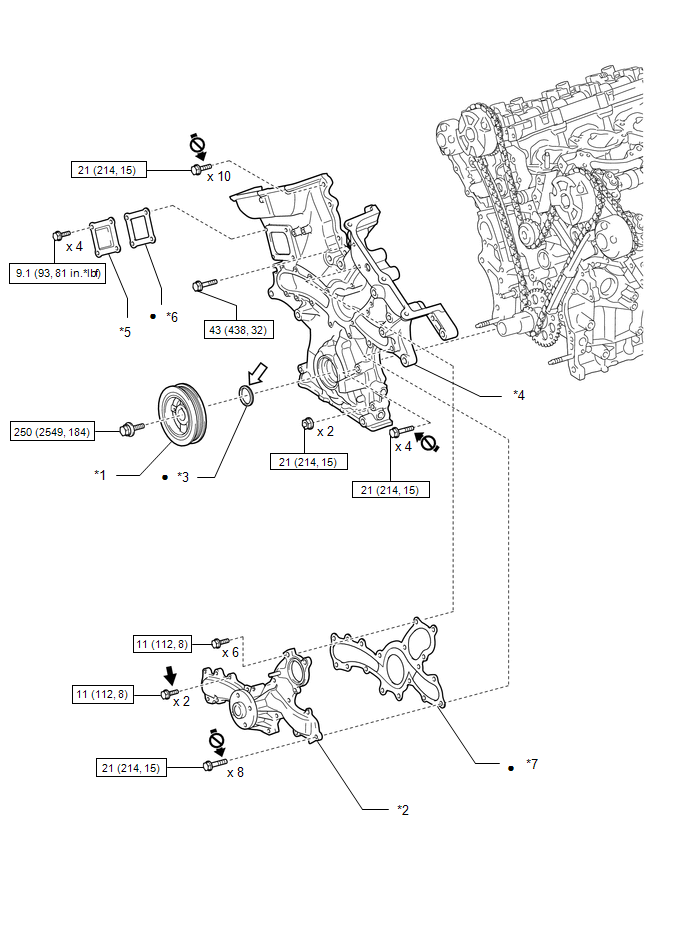

Fig 1: Engine Unit Replacement Components With Torque Specifications (11 Of 15)
GTY427239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT PULLEY *2 ENGINE WATER PUMP ASSEMBLY
*3 TIMING CHAIN CASE OIL SEAL *4 TIMING CHAIN COVER SUB-ASSEMBLY
*5 TIMING CHAIN COVER PLATE *6 TIMING CHAIN COVER PLATE GASKET
*7 WATER PUMP GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 MP Grease
Do not apply lubricants to the threaded parts * Precoated part


Fig 1: Engine Unit Replacement Components With Torque Specifications (12 Of 15)
GTY453111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CHAIN SUB-ASSEMBLY *2 CHAIN TENSIONER SLIPPER
*3 CRANKSHAFT TIMING SPROCKET *4 IDLE SPROCKET ASSEMBLY
*5 NO. 1 CHAIN TENSIONER ASSEMBLY *6 NO. 1 CHAIN VIBRATION DAMPER
*7 NO. 2 CHAIN VIBRATION DAMPER *8 NO. 1 IDLE GEAR SHAFT
*9 NO. 2 IDLE GEAR SHAFT *10 GASKET
*11 PULLEY SET KEY - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


Fig 1: Engine Unit Replacement Components With Torque Specifications (13 Of 15)
GTY438261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Bank 1 - -
*1 CAMSHAFT *2 CAMSHAFT BEARING CAP
*3 CAMSHAFT HOUSING SUB-ASSEMBLY RH *4 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*5 NO. 2 CAMSHAFT *6 NO. 2 CHAIN TENSIONER ASSEMBLY
*7 VALVE LASH ADJUSTER ASSEMBLY *8 VALVE STEM CAP
*9 NO. 2 CHAIN SUB-ASSEMBLY *10 CAMSHAFT TIMING GEAR ASSEMBLY
*11 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY *12 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 1st: 10 (102, 7)
2nd: 16 (163, 12)		 - -


Fig 1: Engine Unit Replacement Components With Torque Specifications (14 Of 15)
GTY447738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Bank 2 - -
*1 CAMSHAFT BEARING CAP *2 CAMSHAFT HOUSING SUB-ASSEMBLY LH
*3 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY *4 NO. 3 CAMSHAFT
*5 NO. 3 CHAIN TENSIONER ASSEMBLY *6 NO. 4 CAMSHAFT
*7 VALVE LASH ADJUSTER ASSEMBLY *8 VALVE STEM CAP
*9 NO. 2 CHAIN SUB-ASSEMBLY *10 CAMSHAFT TIMING GEAR ASSEMBLY
*11 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY *12 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 1st: 10 (102, 7)
2nd: 16 (163, 12)		 - -


Fig 1: Engine Unit Replacement Components With Torque Specifications (15 Of 15)
GTY432401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Oil Cooler - -
*1 CYLINDER HEAD GASKET LH *2 CYLINDER HEAD GASKET RH
*3 CYLINDER HEAD SUB-ASSEMBLY LH *4 CYLINDER HEAD SUB-ASSEMBLY RH
*5 WATER INLET PIPE *6 CYLINDER HEAD SET BOLT
*7 PLATE WASHER *8 NO. 1 WATER BY-PASS HOSE
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 1st: 36 (367, 27)
2nd: Turn 90°
3rd: Turn 90°		 - -
