Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

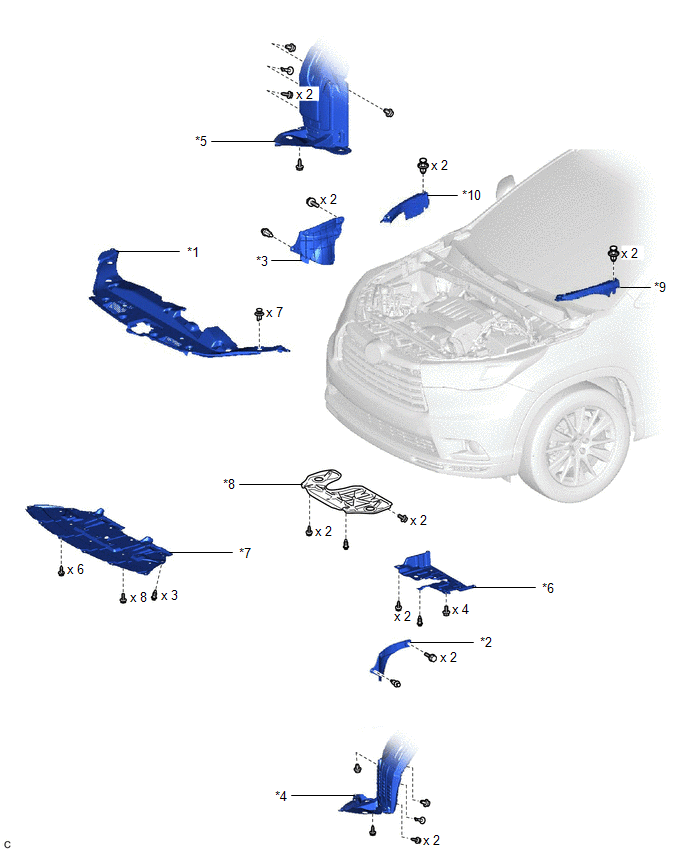

Fig 1: Engine Assembly & Engine Under Cover Replacement Components (1 Of 8)
GTY431463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COOL AIR INTAKE DUCT SEAL *2 FRONT FENDER APRON SEAL LH
*3 FRONT FENDER APRON SEAL RH *4 FRONT FENDER LINER LH
*5 FRONT FENDER LINER RH *6 FRONT FLOOR COVER LH
*7 NO. 1 ENGINE UNDER COVER *8 NO. 2 ENGINE UNDER COVER
*9 RADIATOR SIDE DEFLECTOR SEAL LH *10 RADIATOR SIDE SEAL RH

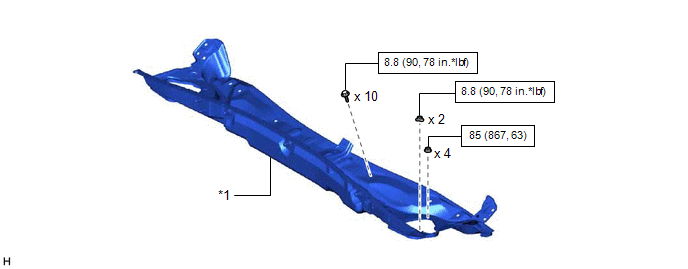

Fig 1: Engine Assembly Replacement Components With Torque Specifications (2 Of 8)
GTY429529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OUTER COWL TOP PANEL SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

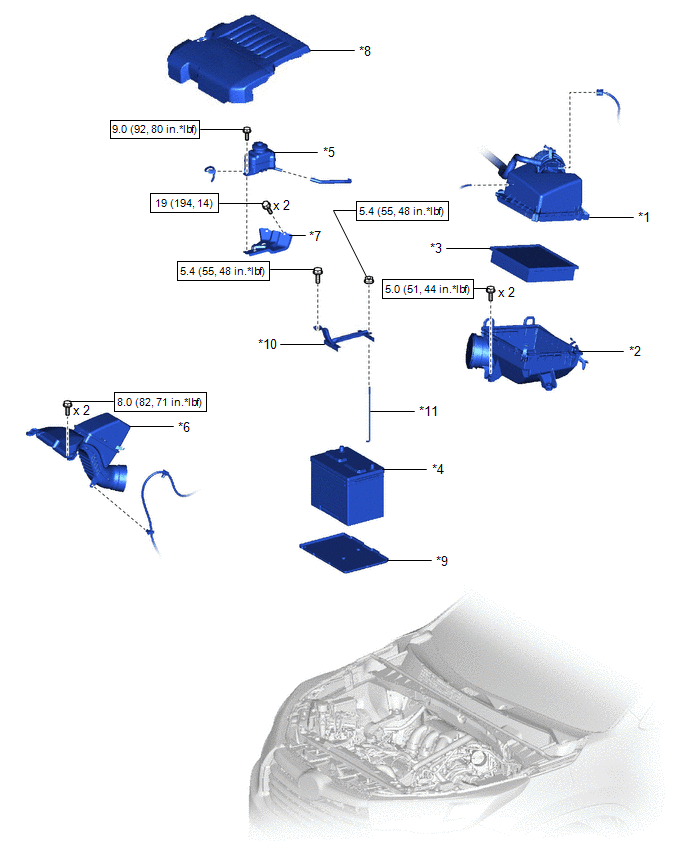

Fig 1: Engine Assembly Replacement Components With Torque Specifications (3 Of 8)
GTY450406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CLEANER CAP SUB-ASSEMBLY *2 AIR CLEANER CASE SUB-ASSEMBLY
*3 AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY *4 BATTERY
*5 BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY *6 INLET AIR CLEANER ASSEMBLY
*7 RESERVOIR BRACKET *8 V-BANK COVER SUB-ASSEMBLY
*9 BATTERY TRAY *10 BATTERY CLAMP
*11 BATTERY CLAMP BOLT - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

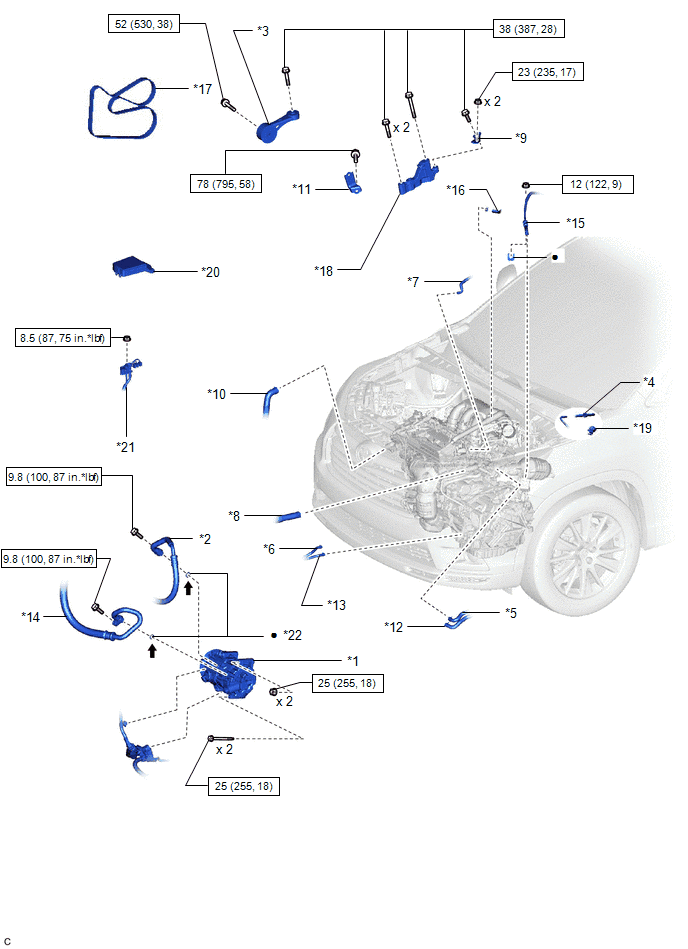

Fig 1: Engine Assembly Replacement Components With Torque Specifications (4 Of 8)
GTY439805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COMPRESSOR ASSEMBLY WITH PULLEY *2 DISCHARGE HOSE SUB-ASSEMBLY
*3 ENGINE MOVING CONTROL ROD *4 FUEL TUBE SUB-ASSEMBLY
*5 INLET HEATER WATER HOSE *6 NO. 1 INLET OIL COOLER HOSE
*7 NO. 1 FUEL VAPOR FEED HOSE *8 NO. 1 RADIATOR HOSE
*9 NO. 2 ENGINE MOUNTING STAY RH *10 NO. 2 RADIATOR HOSE
*11 NO. 3 ENGINE MOUNTING STAY RH *12 OUTLET HEATER WATER HOSE
*13 NO. 1 OUTLET OIL COOLER HOSE *14 SUCTION HOSE SUB-ASSEMBLY
*15 TRANSMISSION CONTROL CABLE ASSEMBLY *16 UNION TO CHECK VALVE HOSE
*17 V-RIBBED BELT *18 ENGINE MOVING CONTROL ROD BRACKET
*19 NO. 1 FUEL PIPE CLAMP *20 NO. 1 RELAY BLOCK COVER
*21 ENGINE WIRE *22 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Compressor oil ND-OIL 8 or equivalent - -

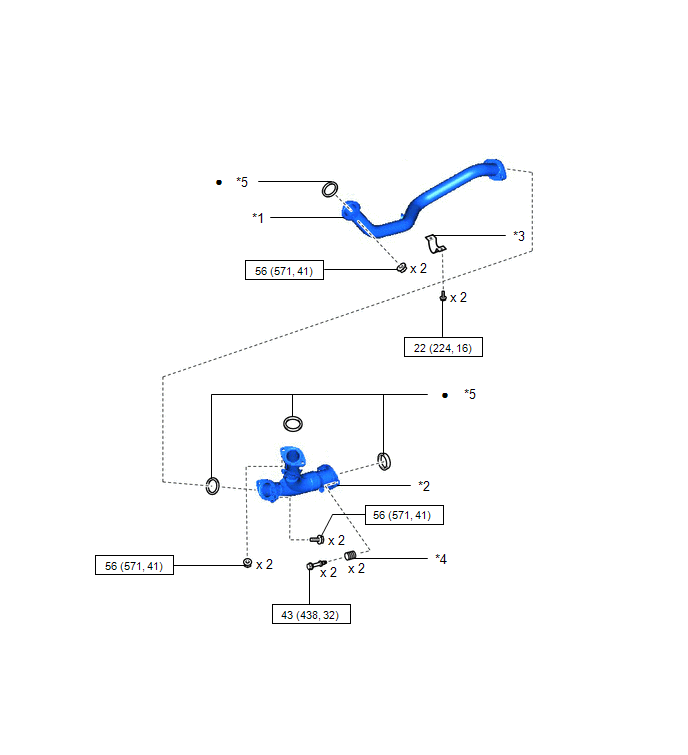

Fig 1: Engine Assembly Replacement Components With Torque Specifications (5 Of 8)
GTY445188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT EXHAUST PIPE ASSEMBLY *2 FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY
*3 NO. 1 EXHAUST PIPE SUPPORT BRACKET *4 COMPRESSION SPRING
*5 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

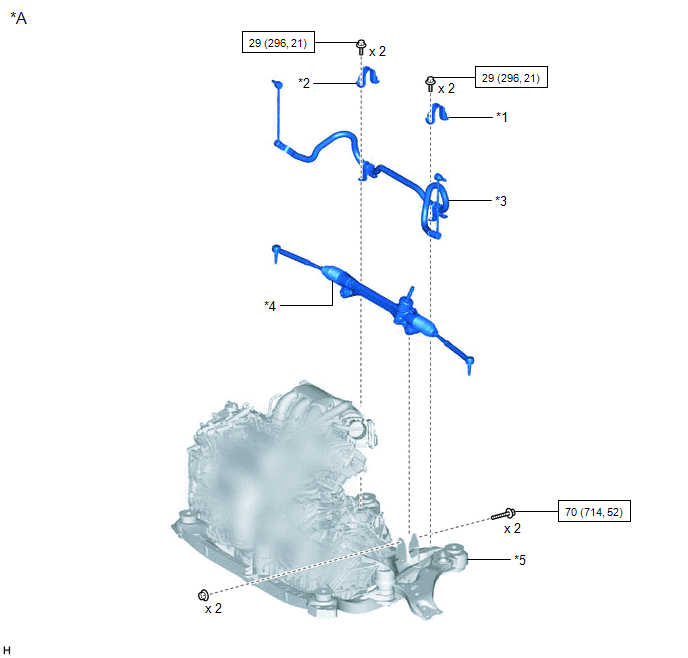

Fig 1: Engine Assembly Replacement Components With Torque Specifications (6 Of 8)
GTY452296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AWD - -
*1 FRONT NO. 1 STABILIZER BRACKET LH *2 FRONT NO. 1 STABILIZER BRACKET RH
*3 FRONT STABILIZER BAR *4 STEERING LINK ASSEMBLY
*5 FRONT FRAME ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

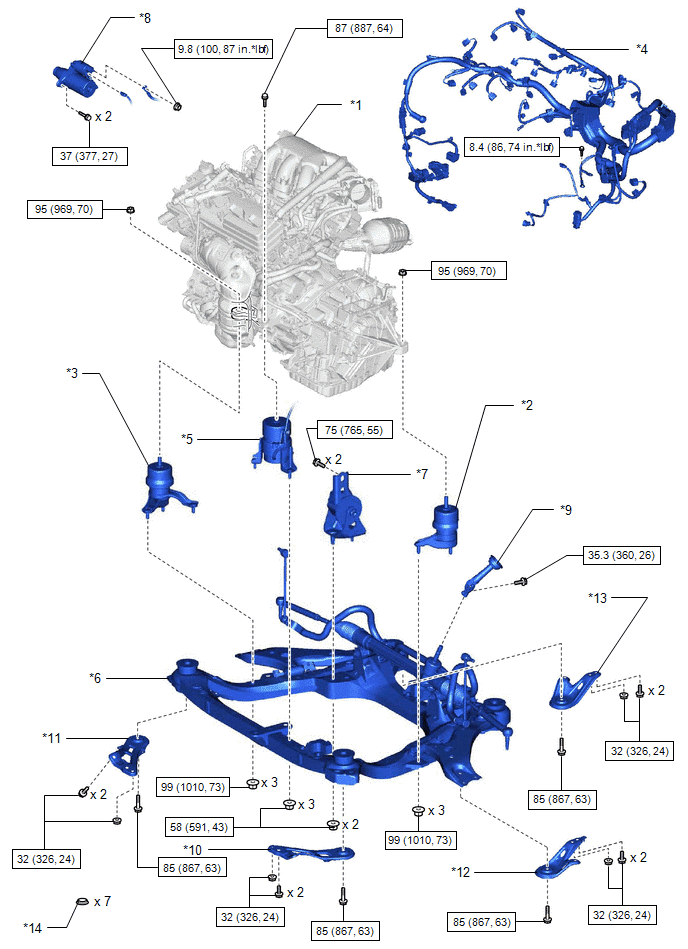

Fig 1: Engine Assembly Replacement Components With Torque Specifications (7 Of 8)
GTY445742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE ASSEMBLY WITH TRANSAXLE *2 ENGINE MOUNTING INSULATOR LH
*3 ENGINE MOUNTING INSULATOR RH *4 ENGINE WIRE
*5 FRONT ENGINE MOUNTING INSULATOR ASSEMBLY *6 FRONT FRAME ASSEMBLY
*7 REAR ENGINE MOUNTING INSULATOR ASSEMBLY *8 STARTER ASSEMBLY
*9 STEERING INTERMEDIATE SHAFT ASSEMBLY *10 FRAME SIDE PLATE LH
*11 FRAME SIDE PLATE RH *12 FRONT SUSPENSION MEMBER REAR BRACE LH
*13 FRONT SUSPENSION MEMBER REAR BRACE RH *14 HOLE PLUG
N*m (kgf*cm, ft.*lbf): Specified torque - -

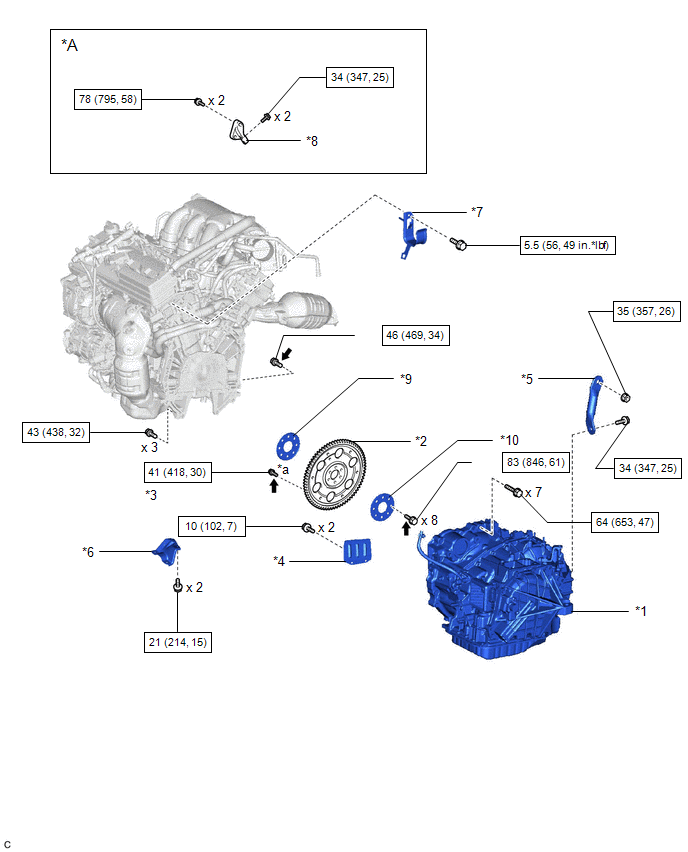

Fig 1: Engine Assembly Replacement Components With Torque Specifications (8 Of 8)
GTY443639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AWD - -
*1 AUTOMATIC TRANSAXLE ASSEMBLY *2 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
*3 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT *4 FLYWHEEL HOUSING UNDER COVER
*5 MANIFOLD STAY *6 NO. 1 EXHAUST PIPE SUPPORT BRACKET
*7 RADIATOR PIPE CLAMP *8 TRANSFER STIFFENER PLATE RH
*9 FRONT DRIVE PLATE SPACER *10 REAR DRIVE PLATE SPACER
*a BLACK: x 1
SILVER: x 5		 - -
N*m (kgf*cm, ft.*lbf): Specified torque Adhesive 1324
* Precoated part - -
