Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL RH
  2. SEPARATE FRONT FENDER LINER RH
    1. Remove the bolt, 4 screws and 4 clips and separate the front fender liner RH.
  3. REMOVE FRONT FENDER APRON SEAL RH

    See step  14

  4. REMOVE V-RIBBED BELT

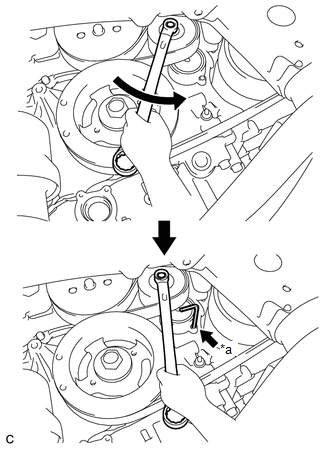

    1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner counterclockwise.
      GTY427938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 5 mm Bi-hexagon Wrench
    2. While turning the V-ribbed belt tensioner counterclockwise, align its holes, and then insert a 5 mm hexagon wrench into the holes to secure the V-ribbed belt tensioner.
    3. Remove the V-ribbed belt from the V-ribbed belt tensioner.
