Installation [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL V-RIBBED BELT

Install the V-ribbed belt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Engine Water Pump Assembly
*2	No. 2 Idler Pulley Sub-assembly
*3	Generator Assembly
*4	Crankshaft Pulley
*5	V-ribbed Belt Tensioner Assembly
*6	Compressor Assembly with Pulley

NOTE:

Put the backside of the V-ribbed belt on the V-ribbed belt tensioner pulley and No. 2 idler pulley sub-assembly.
Check that the V-ribbed belt is properly set to each pulley.

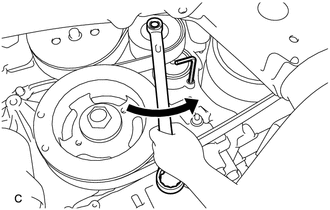

Turn the V-ribbed belt tensioner counterclockwise and remove the 5 mm hexagon wrench.

After installing the V-ribbed belt, check that it fits properly in the ribbed grooves. Confirm that the V-ribbed belt has not slipped out of the grooves on the bottom of the crankshaft pulley by hand.

INSTALL FRONT FENDER APRON SEAL RH
See step 91
INSTALL FRONT FENDER LINER RH
1. Install the front fender liner RH with the bolt, 4 screws and 4 clips.
INSTALL FRONT WHEEL RH
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
