Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

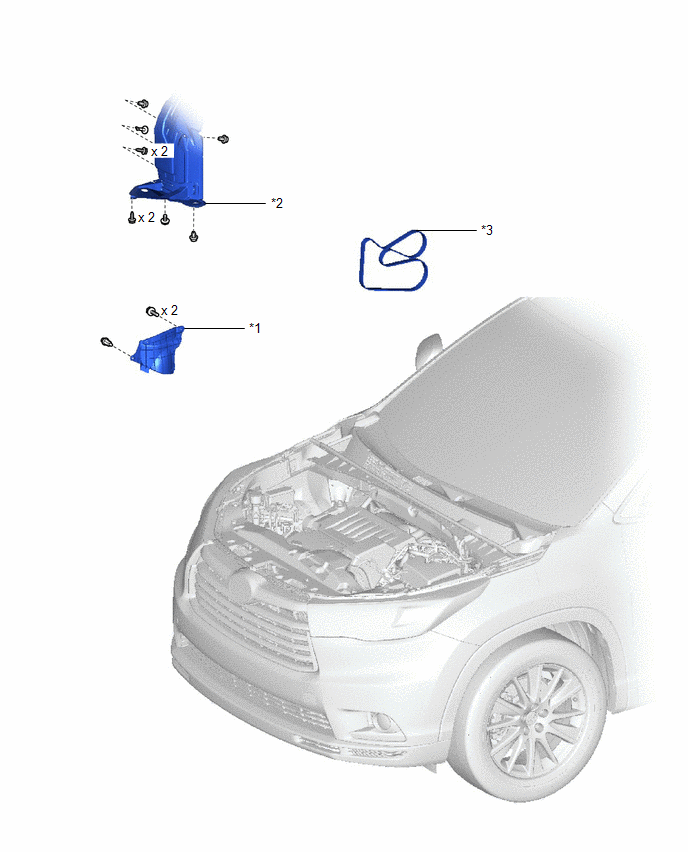

Fig 1: Drive Belt Replacement Components
GTY428874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT FENDER APRON SEAL RH *2 FRONT FENDER LINER RH
*3 V-RIBBED BELT - -
