Components [12/2013 - 11/2015]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

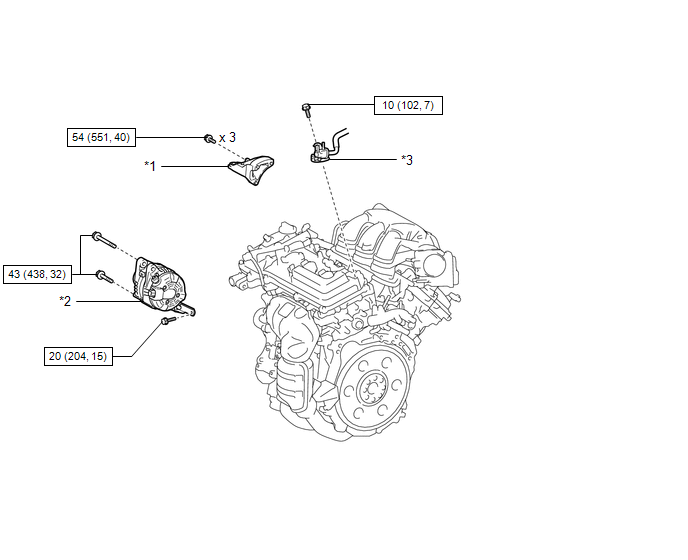

Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 11)
GTY443040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE MOUNTING BRACKET RH *2 GENERATOR ASSEMBLY
*3 NO. 1 VACUUM SWITCHING VALVE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -


Fig 1: Camshaft Replacement Components With Torque Specifications (2 Of 11)
GTY427941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) *2 EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)
*3 IGNITION COIL ASSEMBLY *4 NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
*5 NO. 2 IDLER PULLEY SUB-ASSEMBLY *6 NO. 2 MANIFOLD STAY
*7 V-RIBBED BELT TENSIONER ASSEMBLY *8 WATER PUMP PULLEY
*9 NO. 2 IDLER PULLEY COVER PLATE *10 IDLER PULLEY COVER PLATE
*11 EXHAUST MANIFOLD TO HEAD GASKET *12 EXHAUST MANIFOLD TO HEAD GASKET LH
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


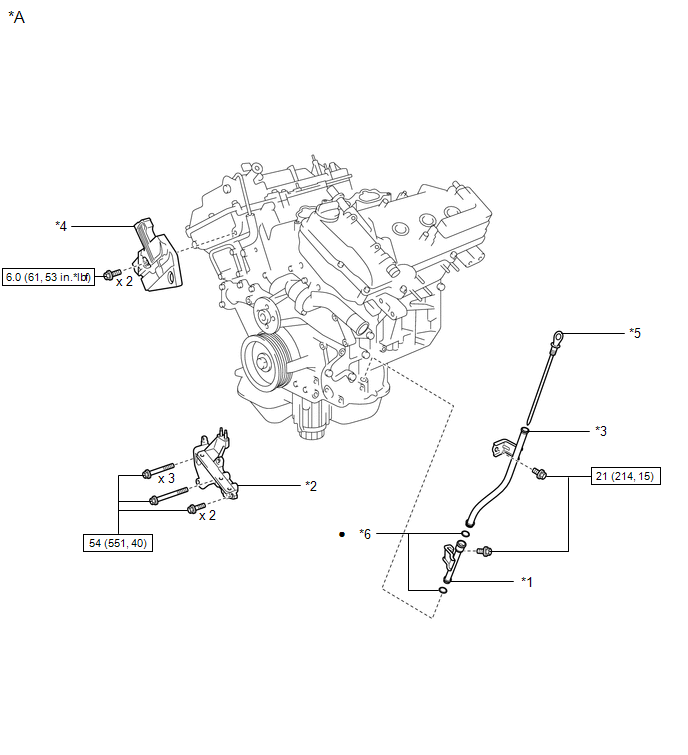

Fig 1: Camshaft Replacement Components With Torque Specifications (3 Of 11)
GTY453894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Oil Cooler - -
*1 ENGINE OIL LEVEL DIPSTICK GUIDE *2 NO. 1 FRONT ENGINE MOUNTING BRACKET LH
*3 NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE *4 NO. 2 TIMING GEAR COVER
*5 ENGINE OIL LEVEL DIPSTICK *6 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

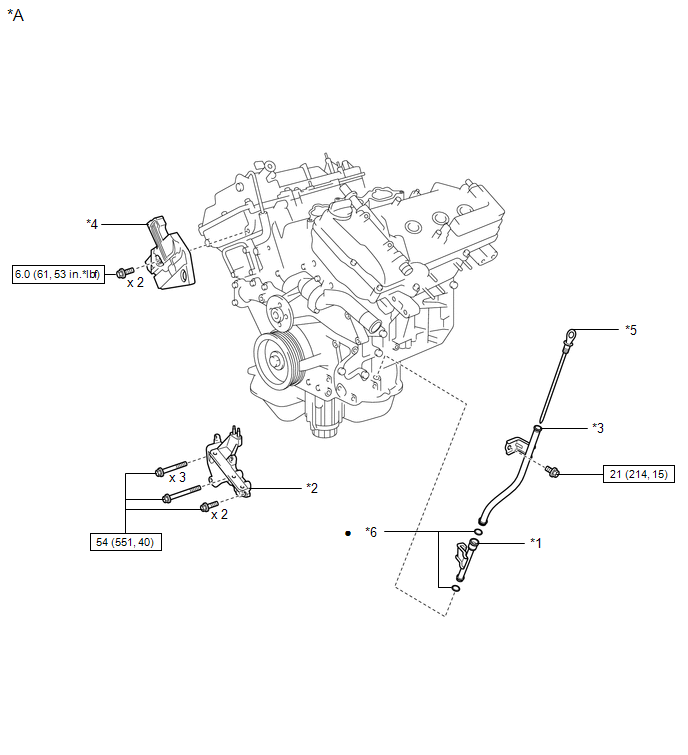

Fig 1: Camshaft Replacement Components With Torque Specifications (4 Of 11)
GTY444823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Oil Cooler - -
*1 ENGINE OIL LEVEL DIPSTICK GUIDE *2 NO. 1 FRONT ENGINE MOUNTING BRACKET LH
*3 NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE *4 NO. 2 TIMING GEAR COVER
*5 ENGINE OIL LEVEL DIPSTICK *6 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

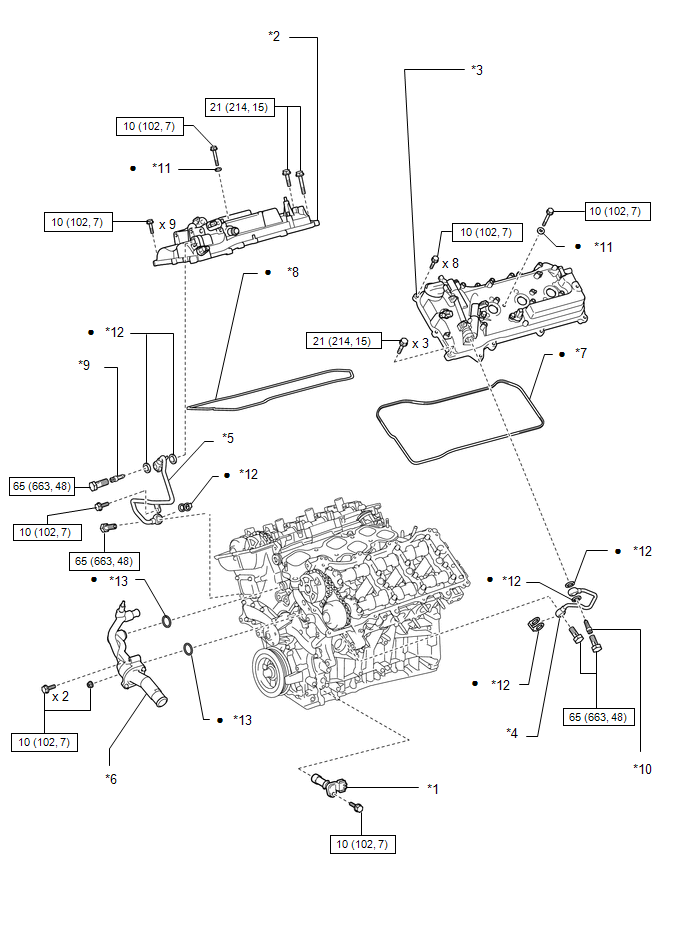

Fig 1: Camshaft Replacement Components With Torque Specifications (5 Of 11)
GTY451546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR *2 CYLINDER HEAD COVER SUB-ASSEMBLY
*3 CYLINDER HEAD COVER SUB-ASSEMBLY LH *4 NO. 1 OIL PIPE
*5 OIL PIPE *6 WATER INLET HOUSING
*7 NO. 2 CYLINDER HEAD COVER GASKET *8 CYLINDER HEAD COVER GASKET
*9 OIL CONTROL VALVE FILTER RH *10 OIL CONTROL VALVE FILTER LH
*11 SEAL WASHER *12 GASKET
*13 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


Fig 1: Camshaft Replacement Components With Torque Specifications (6 Of 11)
GTY447776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Oil Cooler *B Type A
*C Type B - -
*1 NO. 1 OIL COOLER BRACKET *2 OIL COOLER ASSEMBLY
*3 NO. 5 WATER BY-PASS HOSE *4 NO. 4 WATER BY-PASS HOSE
*5 OIL COOLER PIPE *6 OIL COOLER UNION BOLT
*7 O-RING *8 GASKET
*9 HOSE CLAMP - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


Fig 1: Camshaft Replacement Components With Torque Specifications (7 Of 11)
GTY448256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Oil Cooler - -
*1 NO. 2 OIL PAN SUB-ASSEMBLY *2 OIL PAN SUB-ASSEMBLY
*3 OIL STRAINER SUB-ASSEMBLY *4 GASKET
*5 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

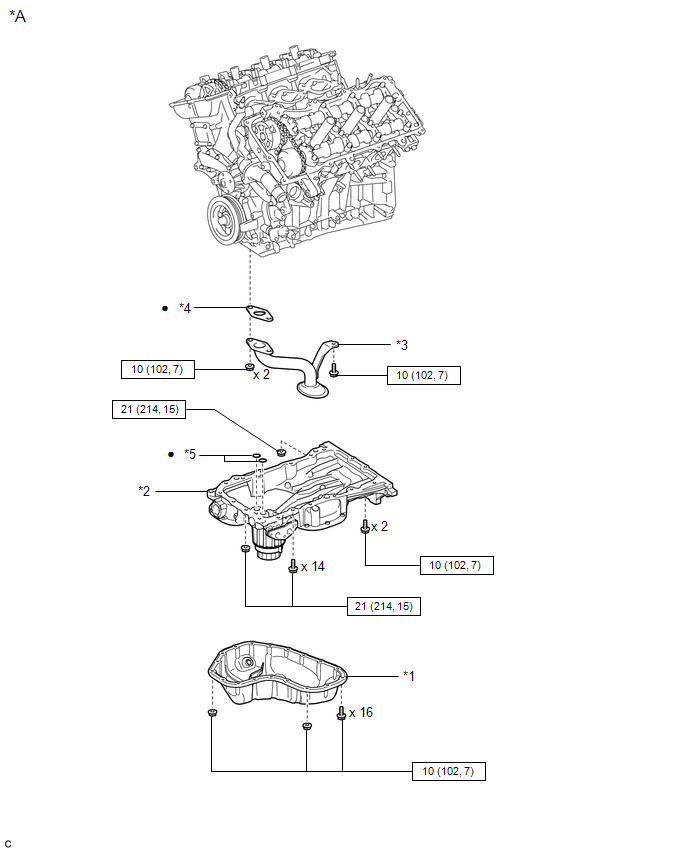

Fig 1: Camshaft Replacement Components With Torque Specifications (8 Of 11)
GTY452684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Oil Cooler - -
*1 NO. 2 OIL PAN SUB-ASSEMBLY *2 OIL PAN SUB-ASSEMBLY
*3 OIL STRAINER SUB-ASSEMBLY *4 GASKET
*5 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

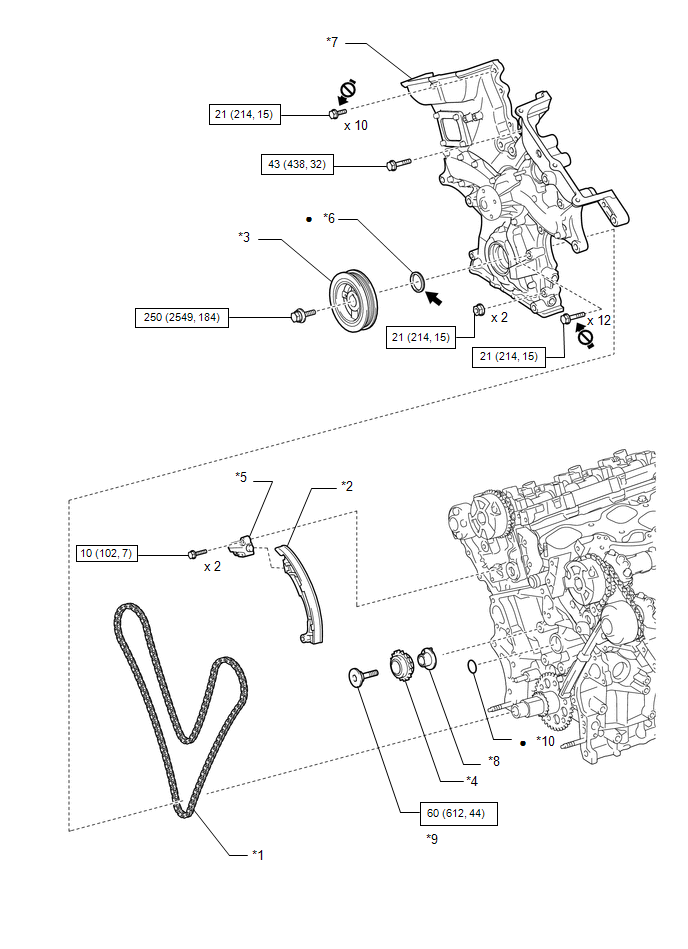

Fig 1: Camshaft Replacement Components With Torque Specifications (9 Of 11)
GTY442213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CHAIN SUB-ASSEMBLY *2 CHAIN TENSIONER SLIPPER
*3 CRANKSHAFT PULLEY *4 IDLE SPROCKET ASSEMBLY
*5 NO. 1 CHAIN TENSIONER ASSEMBLY *6 TIMING CHAIN CASE OIL SEAL
*7 TIMING CHAIN COVER SUB-ASSEMBLY *8 NO. 1 IDLE GEAR SHAFT
*9 NO. 2 IDLE GEAR SHAFT *10 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP Grease Do not apply lubricants to the threaded parts

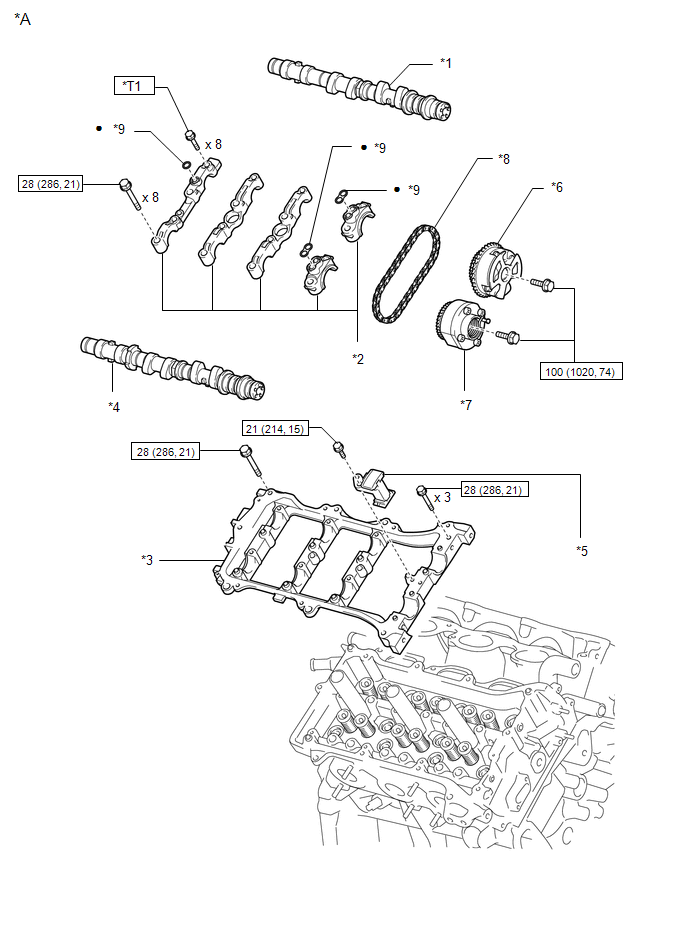

Fig 1: Camshaft Replacement Components With Torque Specifications (10 Of 11)
GTY452227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Bank 1 - -
*1 CAMSHAFT *2 CAMSHAFT BEARING CAP
*3 CAMSHAFT HOUSING SUB-ASSEMBLY RH *4 NO. 2 CAMSHAFT
*5 NO. 2 CHAIN TENSIONER ASSEMBLY *6 CAMSHAFT TIMING GEAR ASSEMBLY
*7 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY *8 NO. 2 CHAIN SUB-ASSEMBLY
*9 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 1st: 10 (102, 7)
2nd: 16 (163, 12)		 - -

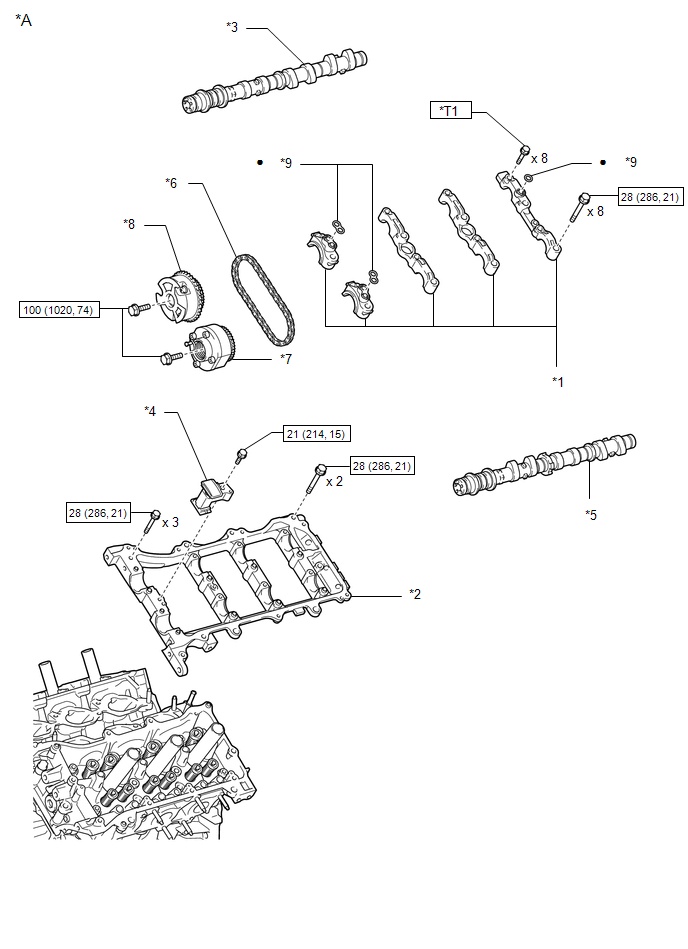

Fig 1: Camshaft Replacement Components With Torque Specifications (11 Of 11)
GTY427922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Bank 2 - -
*1 CAMSHAFT BEARING CAP *2 CAMSHAFT HOUSING SUB-ASSEMBLY LH
*3 NO. 3 CAMSHAFT *4 NO. 3 CHAIN TENSIONER ASSEMBLY
*5 NO. 4 CAMSHAFT *6 NO. 2 CHAIN SUB-ASSEMBLY
*7 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY *8 CAMSHAFT TIMING GEAR ASSEMBLY
*9 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 1st: 10 (102, 7)
2nd: 16 (163, 12)		 - -
