Parts Location [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

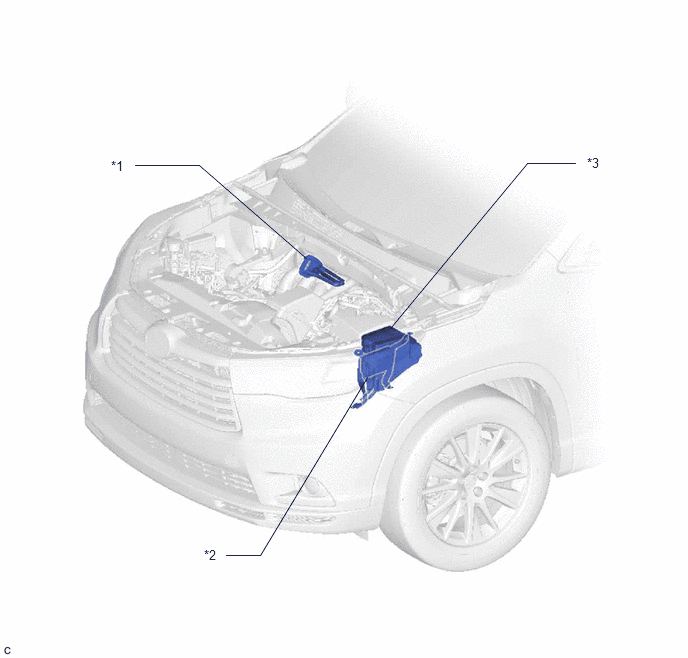

Fig 1: Intake System Components Location
GTY427309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INTAKE AIR CONTROL VALVE (for ACIS) *2 ECM
*3 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- EFI NO. 3 FUSE		 - -
