Catalyst Location
WARNING: This page is about a different variant/trim than selected.

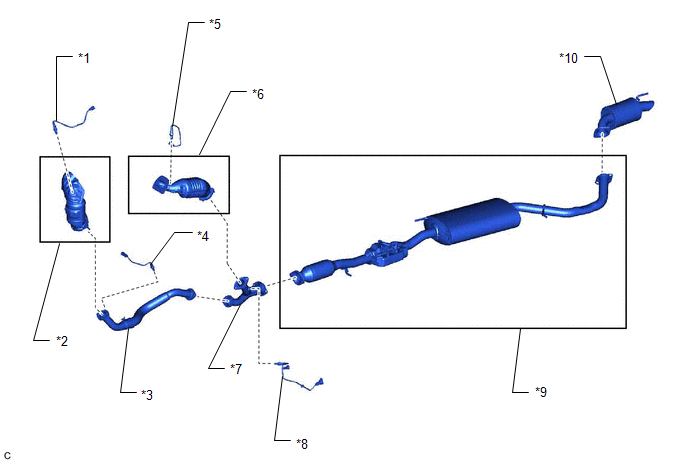

| *1 | Air Fuel Ratio Sensor (Bank 2 Sensor 1) | *2 | Exhaust Manifold Assembly LH (TWC: Front Catalyst) |
| *3 | Front Exhaust Pipe Assembly | *4 | Heated Oxygen Sensor (Bank 2 Sensor 2) |
| *5 | Air Fuel Ratio Sensor (Bank 1 Sensor 1) | *6 | Exhaust Manifold (TWC: Front Catalyst) |
| *7 | No. 3 Front Exhaust Pipe Sub-assembly | *8 | Heated Oxygen Sensor (Bank 1 Sensor 2) |
| *9 | Center Exhaust Pipe Assembly (TWC: Rear Catalyst) | *10 | Tail Exhaust Pipe Assembly |
NOTE:
- If DTC P0420 is output, replace the exhaust manifold (*6) and the center exhaust pipe assembly (*9) together when catalyst replacement is necessary (Excluding air fuel ratio sensor*5).
- If DTC P0430 is output, replace the exhaust manifold assembly LH (*2) and the center exhaust pipe assembly (*9) together when catalyst replacement is necessary (Excluding air fuel ratio sensor*1).
