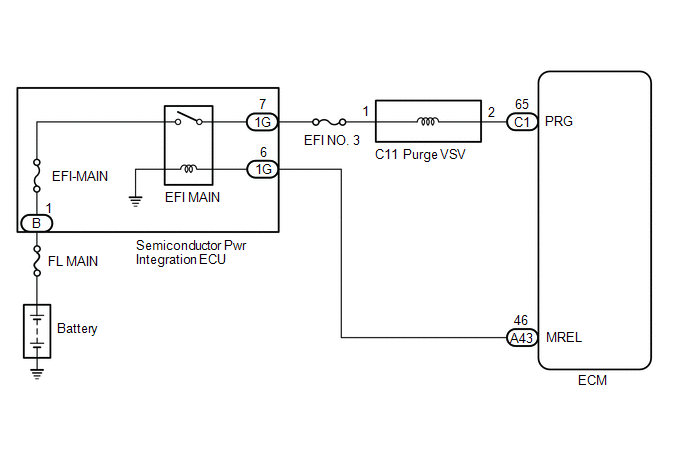

DTC P0443-13: Evaporative Emission System Purge Control Valve "A" Circuit Open [11/2016 - ]: Wiring Diagram

GTY702037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
