Removal [12/2013 - ]: Procedure

  1. REMOVE FRONT WHEEL
  2. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  3. REMOVE FRONT FLEXIBLE HOSE
    1. Remove the union bolt and gasket, and disconnect the front flexible hose from the front disc brake cylinder assembly.
      GTY425999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

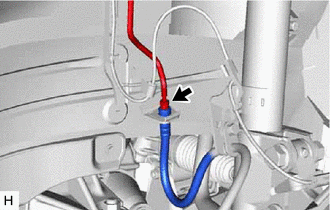

    2. Using a union nut wrench, disconnect the brake line while holding the front flexible hose with a wrench.
      GTY426000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not kink or damage the brake line.
      • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

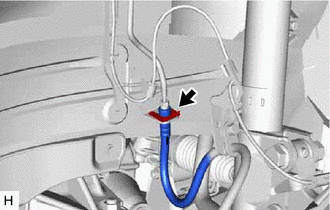

    3. Remove the clip.
      GTY425998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

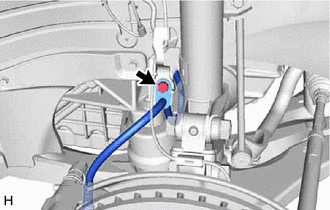

    4. GTY450878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and front flexible hose from the shock absorber bracket.
