Removal [12/2013 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

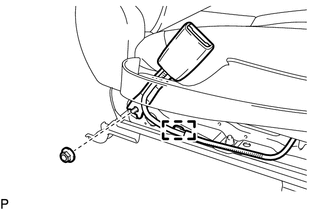

    1. Disengage each clamp under the front seat assembly.
    2. Disconnect the connector.
    3. Disengage the clamp.
      GTY427280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut and front seat inner belt assembly LH.

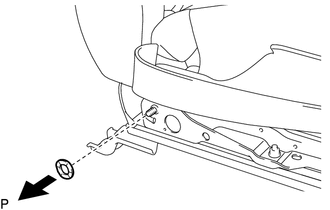

    5. Remove the front seat belt anchor plate as shown in the illustration.
      GTY423862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)
    1. Disengage each clamp under the front seat assembly.
    2. Disconnect the connector.

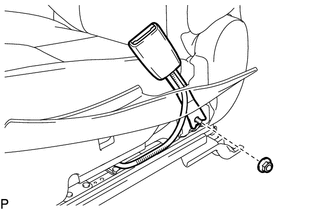

    3. Remove the nut and front seat inner belt assembly RH.
      GTY451154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

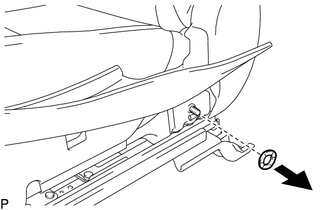

    4. Remove the front seat belt anchor plate as shown in the illustration.
      GTY427283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
