Removal [11/2015 - ]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    See step  1

  2. REMOVE NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
    1. Remove the clip, bolt, 3 screws and No. 1 luggage compartment side cover protector.
      GTY440298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip
      Bolt
      Screw
  3. DISCONNECT NO. 2 AIR CONDITIONING ACCESSORY ASSEMBLY

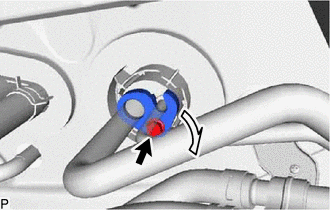

    1. Remove the bolt and rotate the hook connector.
      GTY446770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

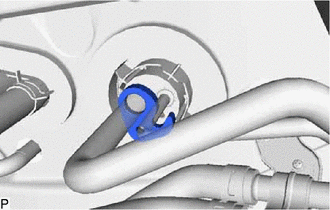

    2. Disconnect the suction tube.
      GTY446768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the suction tube.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

    4. Disconnect the liquid tube.
      GTY455366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the O-ring from the liquid tube.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

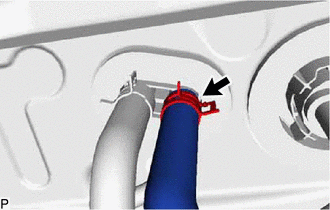

    6. Using pliers, grip the claws of the clip and slide the clip to disconnect the inlet heater water hose.
      GTY446729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not apply excessive force to the inlet heater water hose.
      • Prepare a drain pan or cloth in case the coolant leaks.

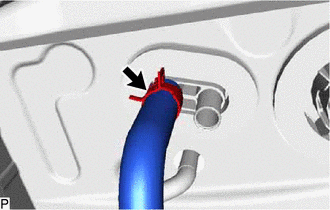

    7. Using pliers, grip the claws of the clip and slide the clip to disconnect the outlet heater water hose.
      GTY446728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not apply excessive force to the outlet heater water hose.
      • Prepare a drain pan or cloth in case the coolant leaks.
  4. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1

  5. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2

  6. REMOVE DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3

  7. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4

  8. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 5 , or refer to PROCEDURE - Step 5

  9. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [12/2013 - 11/2016] , or refer to REMOVAL [11/2016 - ]

  10. REMOVE REAR OUTER SEAT TRACK BRACKET COVER RH

    Refer to PROCEDURE - Step 4

  11. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 12 , or refer to PROCEDURE - Step 12

  12. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 9

  13. REMOVE FRONT DECK SIDE TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 27 , or refer to PROCEDURE - Step 27

  14. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 11

  15. REMOVE NO. 1 DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 40 , or refer to PROCEDURE - Step 40

  16. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 14

  17. REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (w/ Rear Automatic Air Conditioning System)

    Refer to PROCEDURE - Step 1

  18. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  19. REMOVE DECK TRIM POCKET COVER

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 32 , or refer to PROCEDURE - Step 32

  20. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 33 , or refer to PROCEDURE - Step 33

  21. REMOVE ROPE HOOK

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 34 , or refer to PROCEDURE - Step 34

  22. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Refer to PROCEDURE - Step 49 , or refer to PROCEDURE - Step 49

  23. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 37 , or refer to PROCEDURE - Step 37

  24. REMOVE COOLER PLATE
    1. Disengage the 2 claws to remove the cooler plate.
      GTY455369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE NO. 1 COOLER AIR DUCT
    1. Remove the No. 1 cooler air duct.
      GTY446737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR NO. 5 AIR DUCT

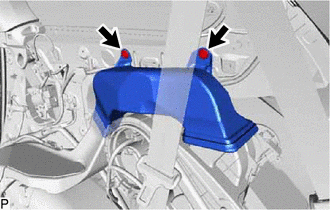

    1. Remove the 2 clips and rear No. 5 air duct.
      GTY446733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR COOLING UNIT ASSEMBLY

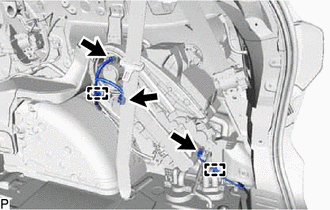

    1. Disconnect each connector.
      GTY446730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage each clamp.
    3. Disconnect the drain cooler hose.

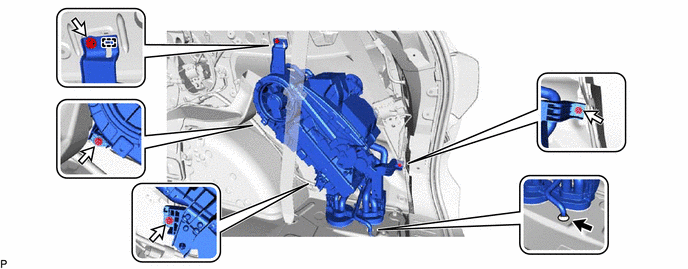

      GTY446734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 bolts.
    5. Disengage the guide and remove the rear cooling unit assembly.
