System Diagram [12/2013 - ]

HINT:

See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake lines.

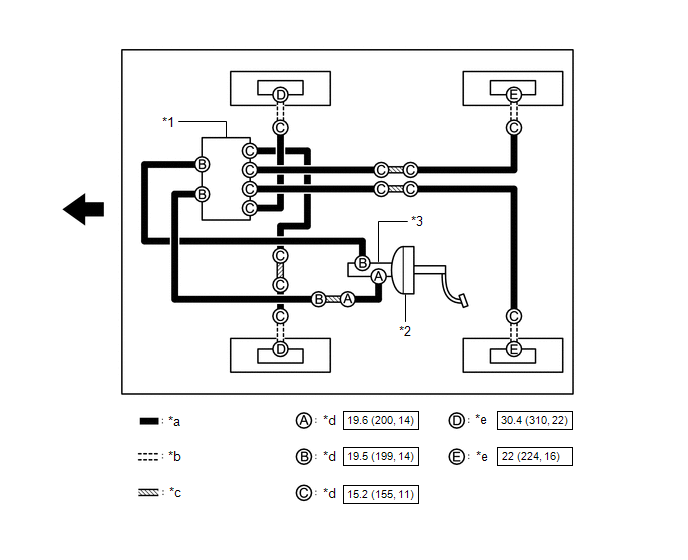

Fig 1: Brake Line System Diagram With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	Brake Actuator Assembly	*2	Brake Booster Assembly
*3	Brake Master Cylinder Sub-assembly	-	-
*a	Brake Line	*b	Flexible Hose
*c	Brake Tube Way	*d	Union Nut
*e	Union Bolt	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque		Front
