Removal [12/2013 - ]: Procedure

  1. REMOVE BACK WINDOW UPPER TRIM PANEL

    See step  1 , or see step  1

  2. REMOVE BACK DOOR TRIM COVER LH

    See step  2 , or see step  2

  3. REMOVE BACK DOOR TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE BACK DOOR LOCK COVER (for Glass Hatch Type)

    See step  4 , or see step  4

  5. REMOVE NO. 2 BACK DOOR SERVICE HOLE COVER

    See step  5 , or see step  5

  6. REMOVE NO. 1 BACK DOOR SERVICE HOLE COVER

    See step  6 , or see step  6

  7. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    See step  7 , or see step  7

  8. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY
    NOTE:
    • Avoid touching the piston rod as much as possible to prevent foreign matter from attaching to it. Be sure to hold the cylinder while servicing.
    • Do not apply any horizontal load to the door stay in order to prevent the piston rod from deforming.

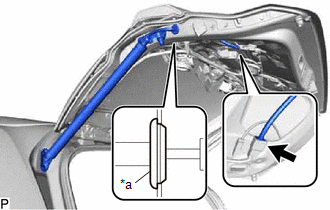

    1. Disconnect the connector.
      GTY447812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet
    2. Disengage the grommet.

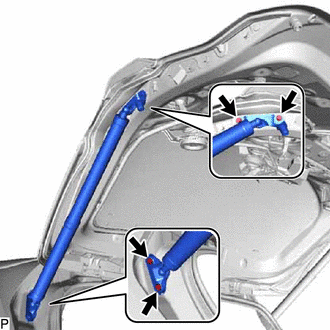

    3. Remove the 4 bolts and power back door unit set assembly.
      GTY435538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Remove the power back door unit set assembly while supporting the back door by hand.
