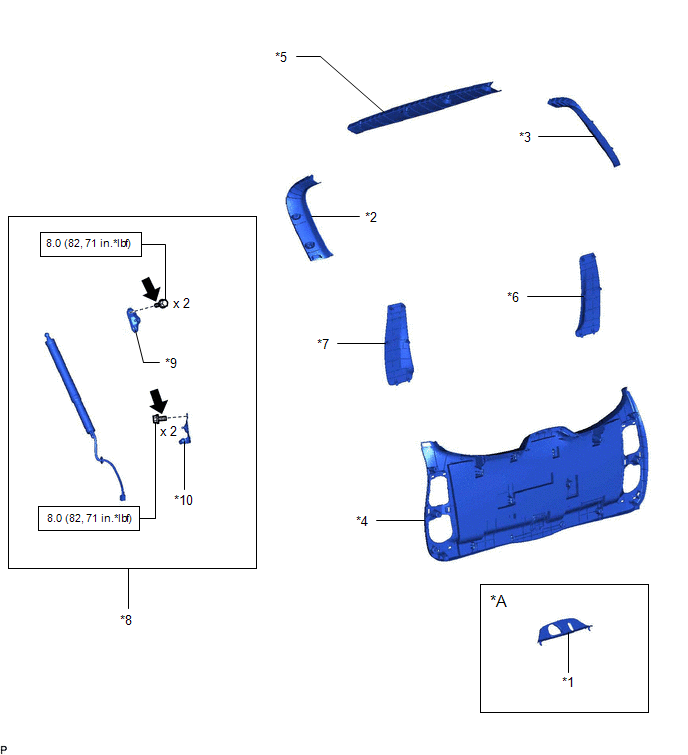

| Callout |
Description |
Callout |
Description |
| *A |
for Glass Hatch Type |
- |
- |
| *1 |
BACK DOOR LOCK COVER |
*2 |
BACK DOOR TRIM COVER LH |
| *3 |
BACK DOOR TRIM COVER RH |
*4 |
BACK DOOR TRIM PANEL ASSEMBLY |
| *5 |
BACK WINDOW UPPER TRIM PANEL |
*6 |
NO. 1 BACK DOOR SERVICE HOLE COVER |
| *7 |
NO. 2 BACK DOOR SERVICE HOLE COVER |
*8 |
POWER BACK DOOR UNIT SET ASSEMBLY |
| *9 |
BACK DOOR DAMPER STAY UPPER BRACKET |
*10 |
BACK DOOR DAMPER STAY LOWER BRACKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
 |
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
| * |
Precoated part |
- |
- |
