Components [12/2013 - ]: Illustration

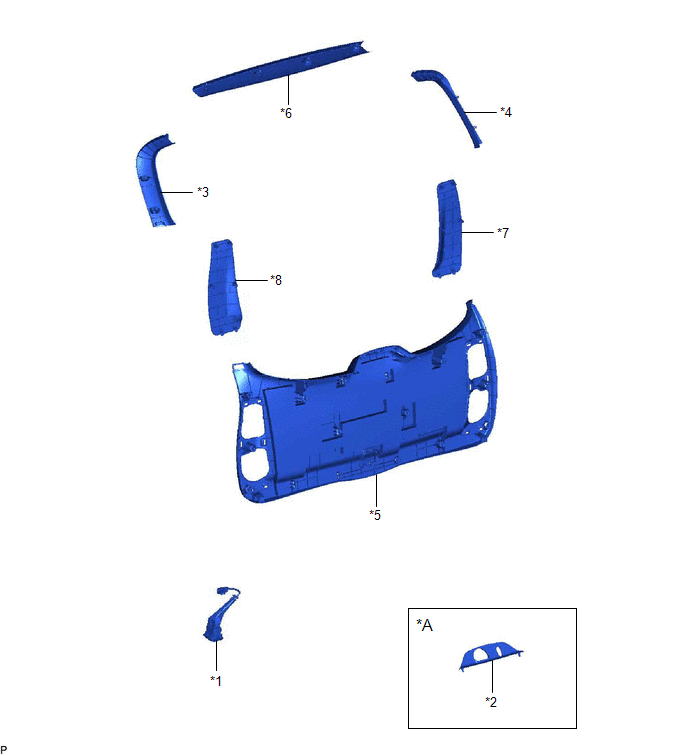

Fig 1: Power Back Door Closer Switch Replacement Components
GTY454160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Glass Hatch Type - -
*1 BACK DOOR CONTROL SWITCH *2 BACK DOOR LOCK COVER
*3 BACK DOOR TRIM COVER LH *4 BACK DOOR TRIM COVER RH
*5 BACK DOOR TRIM PANEL ASSEMBLY *6 BACK WINDOW UPPER TRIM PANEL
*7 NO. 1 BACK DOOR SERVICE HOLE COVER *8 NO. 2 BACK DOOR SERVICE HOLE COVER
