On-Vehicle Inspection [12/2013 - ]: Procedure

  1. INSPECT HOOD SUB-ASSEMBLY

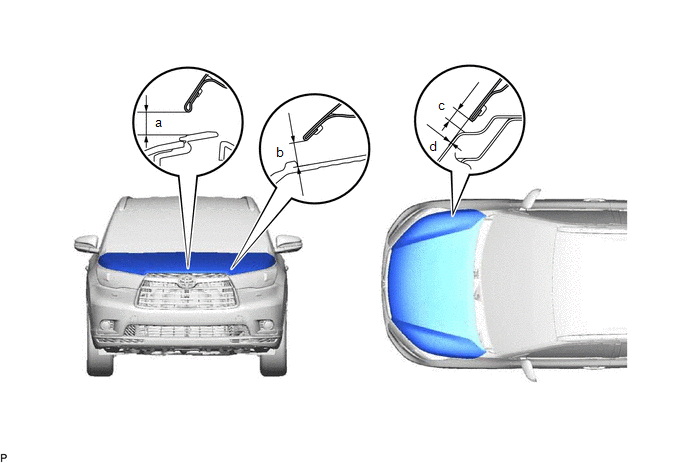

    1. Check that the clearance measurements of areas "a" through "d" are within each standard range.
      GTY450918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE

      Area Measurement Area Measurement
      a 9.31 to 12.31 mm (0.367 to 0.485 in.) b 8.91 to 11.91 mm (0.351 to 0.469 in.)
      c 3.4 to 6.4 mm (0.134 to 0.252 in.) d -1.4 to 1.6 mm (-0.0551 to 0.0630 in.)
