Components [12/2013 - ]: Illustration

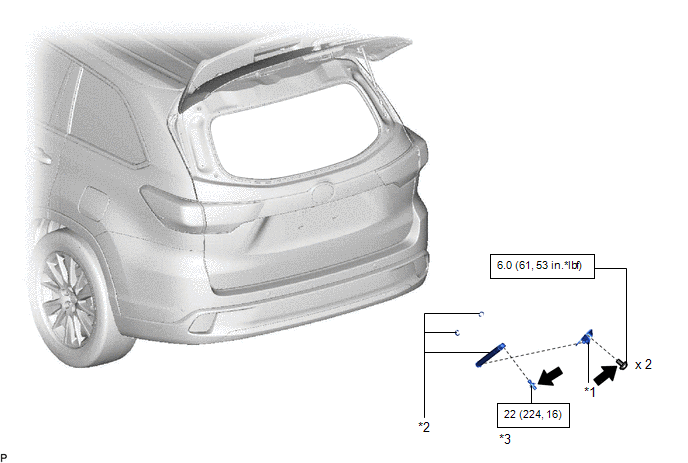

Fig 1: Back Window Support Replacement Components With Torque Specifications
GTY440229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BACK DOOR GLASS GUIDE UPPER BRACKET *2 BACK WINDOW STAY ASSEMBLY
*3 BACK WINDOW STAY BOLT - -
N*m (kgf*cm, ft.*lbf): Specified torque Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
* Precoated part - -
