Components [12/2013 - 11/2016]: Illustration

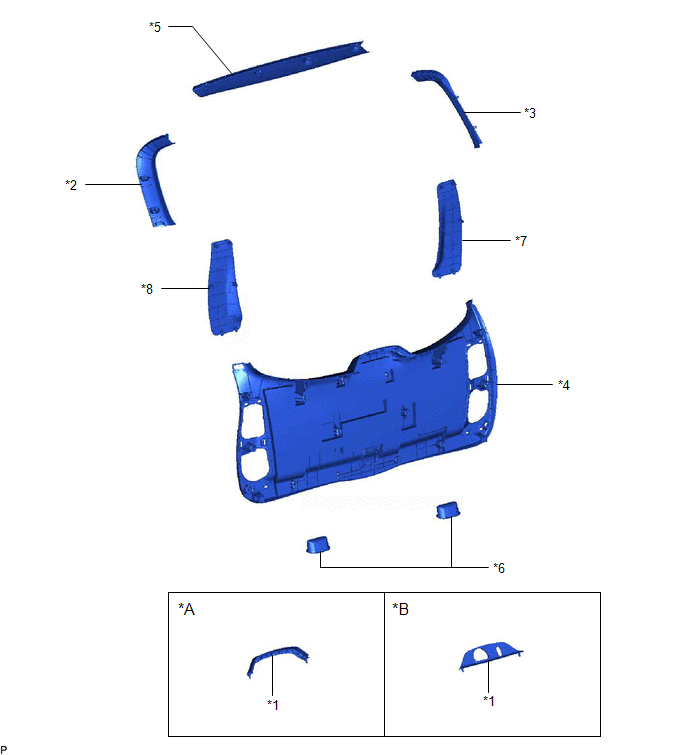

Fig 1: Back Door Replacement Components (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Fixed Glass Type	*B	for Glass Hatch Type
*1	BACK DOOR LOCK COVER	*2	BACK DOOR TRIM COVER LH
*3	BACK DOOR TRIM COVER RH	*4	BACK DOOR TRIM PANEL ASSEMBLY
*5	BACK WINDOW UPPER TRIM PANEL	*6	DOOR PULL HANDLE
*7	NO. 1 BACK DOOR SERVICE HOLE COVER	*8	NO. 2 BACK DOOR SERVICE HOLE COVER

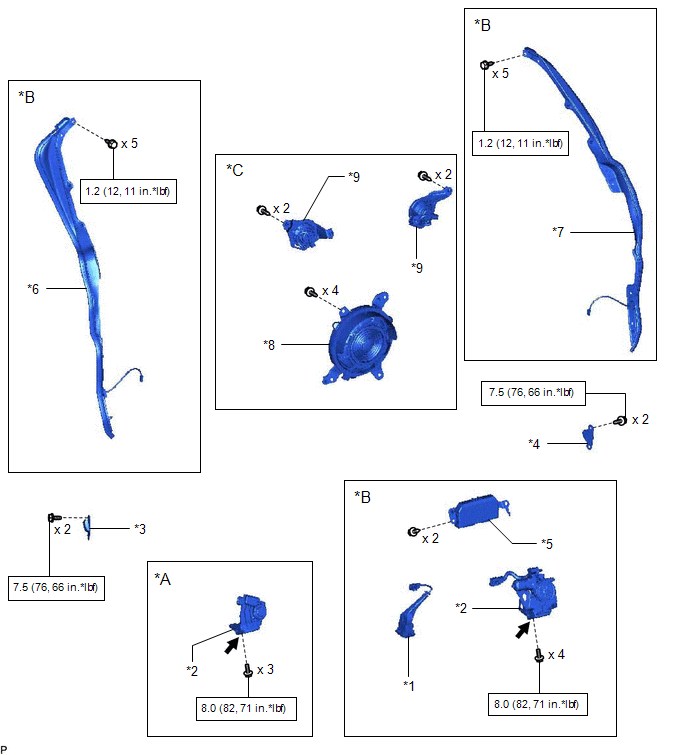

Fig 1: Back Door Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Power Back Door	*B	w/ Power Back Door
*C	w/ Back Door Speaker	-	-
*1	BACK DOOR CONTROL SWITCH	*2	BACK DOOR LOCK ASSEMBLY
*3	BACK DOOR LOWER STOPPER LH	*4	BACK DOOR LOWER STOPPER RH
*5	MULTIPLEX NETWORK DOOR ECU	*6	POWER BACK DOOR SENSOR ASSEMBLY LH
*7	POWER BACK DOOR SENSOR ASSEMBLY RH	*8	REAR NO. 2 SPEAKER ASSEMBLY
*9	REAR NO. 3 SPEAKER ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque		MP grease

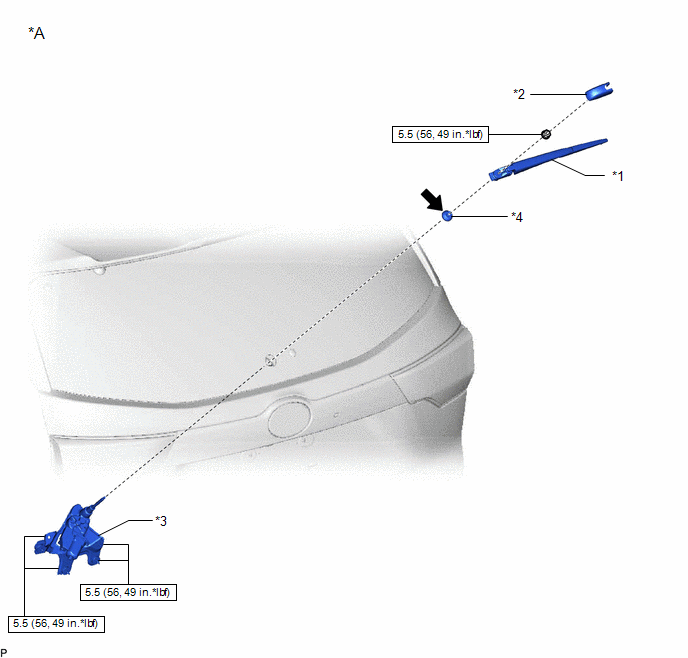

Fig 1: Back Door Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Fixed Glass Type	-	-
*1	REAR WIPER ARM AND BLADE ASSEMBLY	*2	REAR WIPER ARM HEAD CAP
*3	REAR WIPER MOTOR ASSEMBLY	*4	REAR WIPER MOTOR GROMMET
	N*m (kgf*cm, ft.*lbf): Specified torque		MP grease

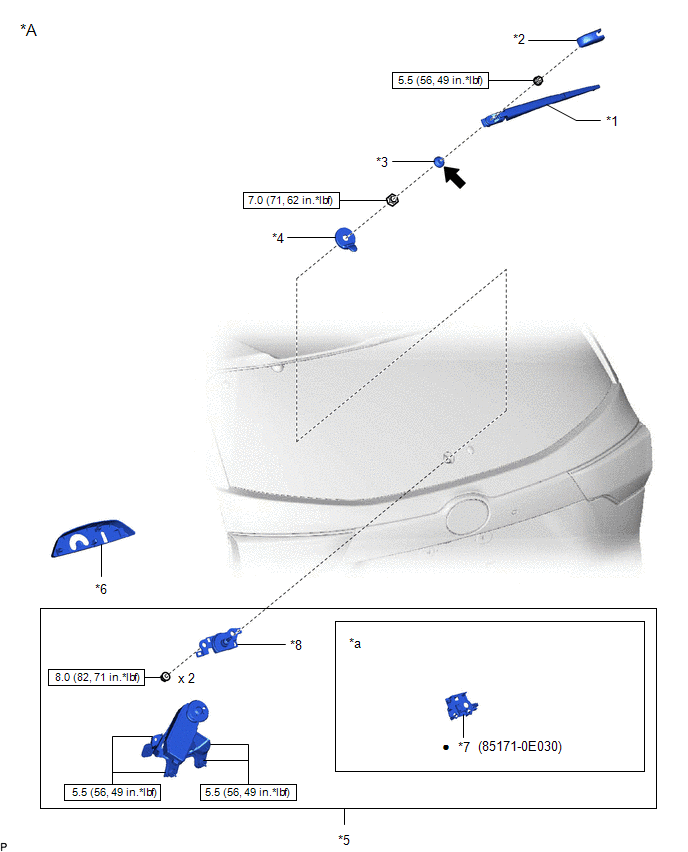

Fig 1: Back Door Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Glass Hatch Type	-	-
*1	REAR WIPER ARM AND BLADE ASSEMBLY	*2	REAR WIPER ARM HEAD CAP
*3	REAR WIPER LINK CAP	*4	REAR WIPER LINK PIVOT WITH WASHER PACKING
*5	REAR WIPER MOTOR ASSEMBLY	*6	REAR WIPER SHAFT COVER
*7	CENTERING JIG	*8	REAR WIPER LINK
*a	Necessary for removal (when reusing the rear wiper motor assembly) and installation procedures.	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

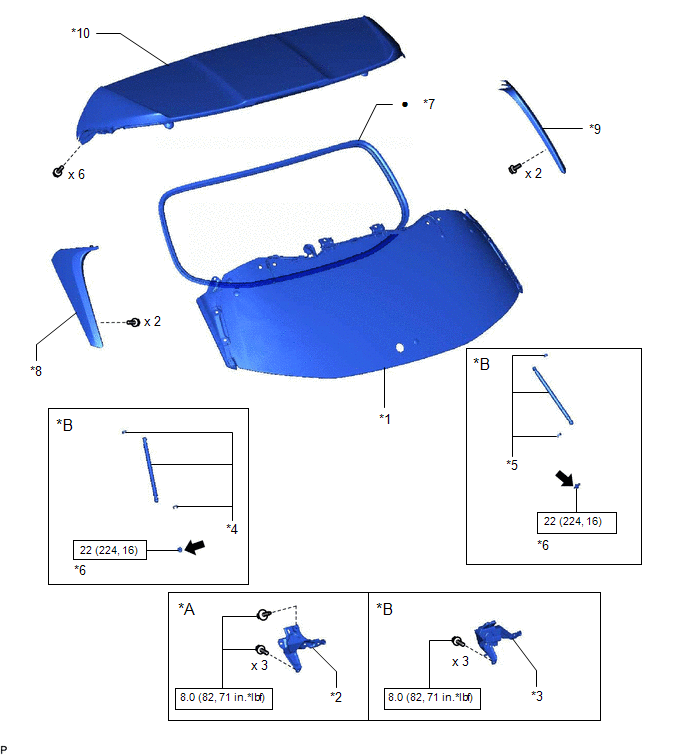

Fig 1: Back Door Replacement Components With Torque Specifications (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Fixed Glass Type	*B	for Glass Hatch Type
*1	BACK DOOR GLASS	*2	BACK DOOR GLASS GUIDE BRACKET SUB-ASSEMBLY
*3	BACK WINDOW LOCK ASSEMBLY	*4	BACK WINDOW STAY ASSEMBLY LH
*5	BACK WINDOW STAY ASSEMBLY RH	*6	BACK WINDOW STAY BOLT
*7	NO. 2 BACK DOOR WEATHERSTRIP	*8	REAR SIDE SPOILER SUB-ASSEMBLY LH
*9	REAR SIDE SPOILER SUB-ASSEMBLY RH	*10	REAR SPOILER SUB-ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part

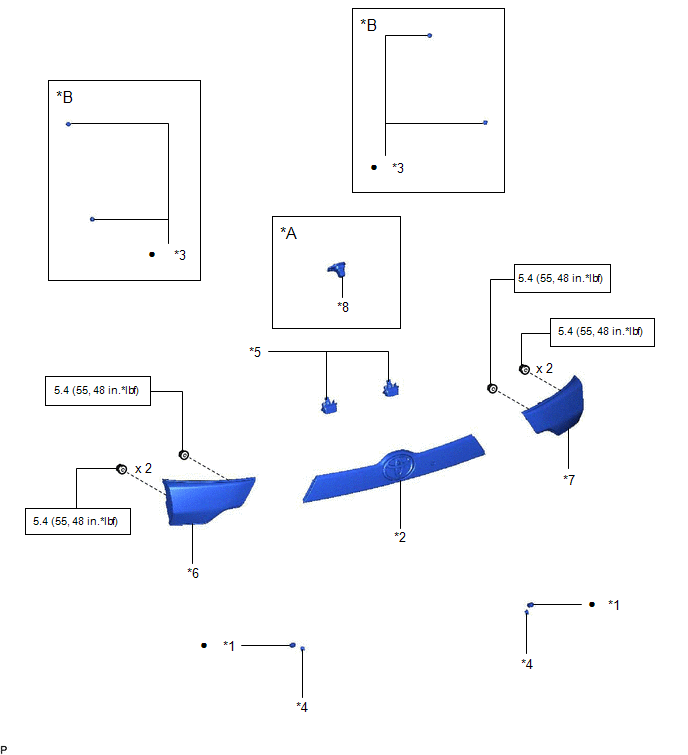

Fig 1: Back Door Replacement Components With Torque Specifications (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Rear View Monitor System	*B	for Glass Hatch Type
*1	BACK DOOR LOWER STOPPER CUSHION	*2	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
*3	CUSHION	*4	DOOR DUST PROOF SEAL
*5	LICENSE PLATE LIGHT ASSEMBLY	*6	REAR LIGHT ASSEMBLY LH
*7	REAR LIGHT ASSEMBLY RH	*8	TELEVISION CAMERA ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

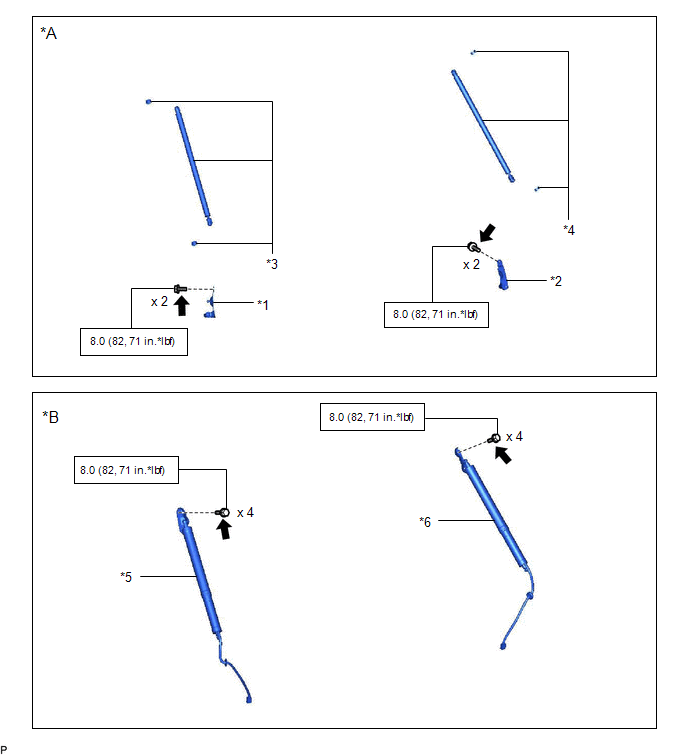

Fig 1: Back Door Replacement Components With Torque Specifications (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Power Back Door	*B	w/ Power Back Door
*1	BACK DOOR DAMPER STAY LOWER BRACKET LH	*2	BACK DOOR DAMPER STAY LOWER BRACKET RH
*3	BACK DOOR STAY ASSEMBLY LH	*4	BACK DOOR STAY ASSEMBLY RH
*5	POWER BACK DOOR UNIT SET ASSEMBLY LH	*6	POWER BACK DOOR UNIT SET ASSEMBLY RH
	N*m (kgf*cm, ft.*lbf): Specified torque		Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
*	Precoated part	-	-
