Removal [12/2013 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

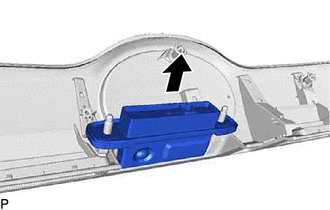

    1. Remove the back door opener switch assembly as shown in the illustration.
      GTY452946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
