Removal [12/2013 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE TELEVISION CAMERA ASSEMBLY
    1. Disconnect the connector.

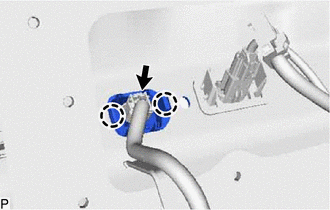

      GTY450224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the television camera assembly.
