Removal [12/2013 - ]: Procedure

  1. REMOVE TELEVISION BASE
    1. Using a moulding remover, disengage the 4 clips to remove the television base.

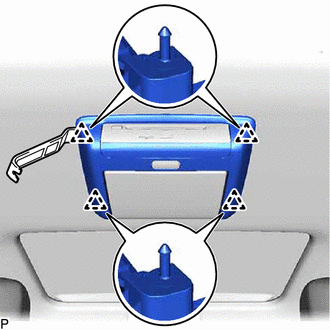

      GTY431970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE TELEVISION DISPLAY ASSEMBLY
    1. Disconnect the connector.

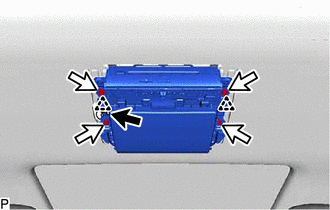

      GTY431968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts.
    3. Using a clip remover, disengage the 2 clips to remove the television display assembly.
