Components [12/2013 - ]: Illustration

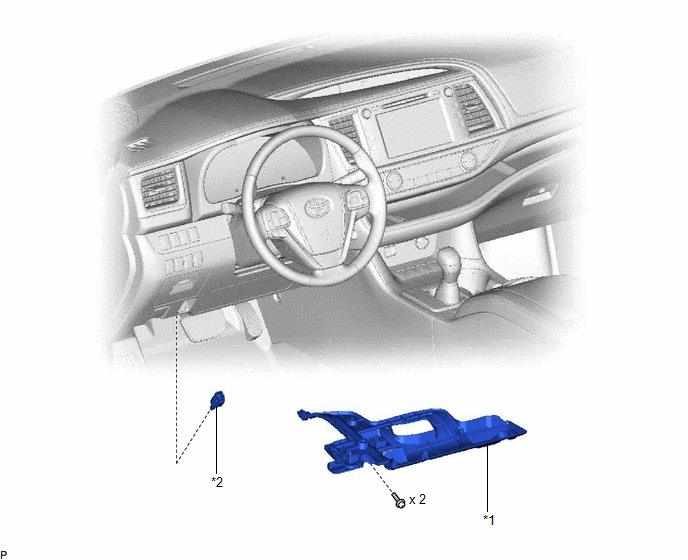

Fig 1: Stop Light Switch Replacement Components
GTY436295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *2 STOP LIGHT SWITCH ASSEMBLY
