Removal [12/2013 - ]: Procedure

  1. REMOVE OUTER MIRROR

    Refer to PROCEDURE - Step 1

  2. REMOVE OUTER MIRROR COVER WITH LOWER HOUSING

    Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2

  3. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

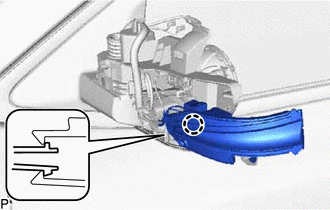

    1. Disengage the claw to disconnect the side turn signal light assembly.
      GTY440313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the side turn signal light assembly.
