Reassembly [12/2013 - 11/2016]: Procedure

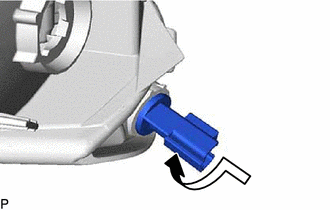

  1. INSTALL BACK-UP LIGHT BULB
    1. Install the back-up light bulb to the back-up light socket.
    2. Turn the back-up light socket with the back-up light bulb as shown in the illustration to install them as a unit.
      GTY440339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

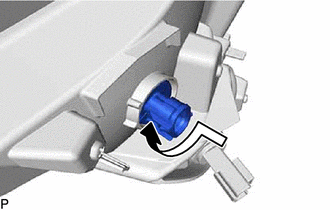

  2. INSTALL TAIL LIGHT BULB
    1. Install the tail light bulb to the tail light socket.
    2. Turn the tail light socket with the tail light bulb as shown in the illustration to install them as a unit.
      GTY453993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
