Disassembly [12/2013 - 11/2016]: Procedure

  1. REMOVE TAIL LIGHT BULB

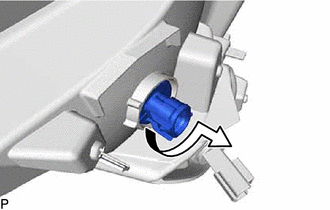

    1. Turn the tail light socket with the tail light bulb as shown in the illustration to remove them as a unit.
      GTY440350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail light bulb from the tail light socket.
  2. REMOVE BACK-UP LIGHT BULB

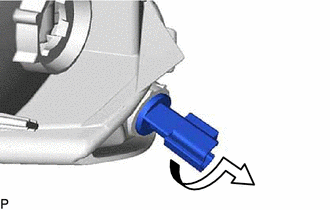

    1. Turn the back-up light socket with the back-up light bulb as shown in the illustration to remove them as a unit.
      GTY440348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the back-up light bulb from the back-up light socket.
